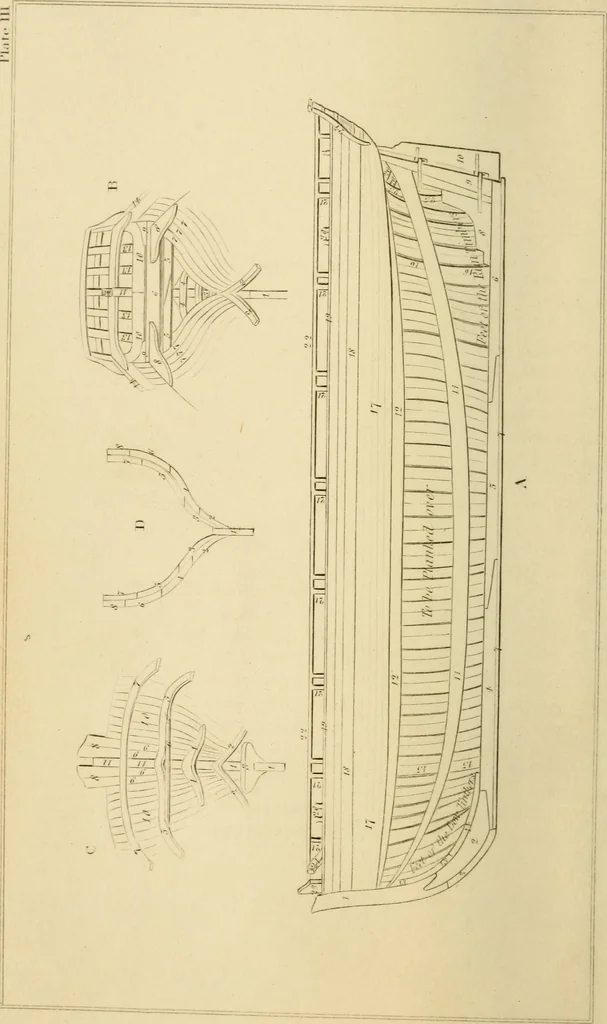

PLATE III.THE FRAME OP A SHIP. INDEX OF BEFERENCE8. A. The Outside. 1 Upper stem-piece. 2 Lower stem-piece. 3 Gripe. 4 Forward keel-piece. 5 Middle keel-piece. 6 After keel-piece. 7 False keel. 8 Stem knee. 9 Stern-post. 10 Rudder. 11 Bilge streaks. 12 First streak under the wales. 13 Apron. 14…
