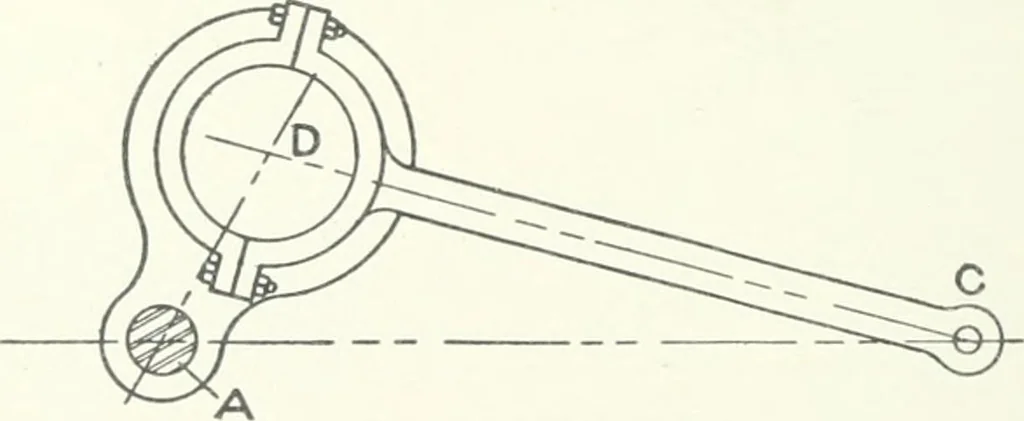

Fig. 50. line DC and drawing <7E perpendicular to it. The component DEis the only one which has any effect on the motion of the point C.We have already learned that the motion of the two ends of a rodmust have their components along the rod equal, therefore lay offfrom C, CF = DE. The actual… … Fig. 51. must be perpendicular to CF, therefore draw FIT perpendicular toCF and meeting CA at H. Then ClI is the velocity of point Cat the same scale at which T)d was drawn. Eccentric. The eccentric and eccentric-rod linkage is inprinciple the same as the crank and connecting rod. To trace outthe…
