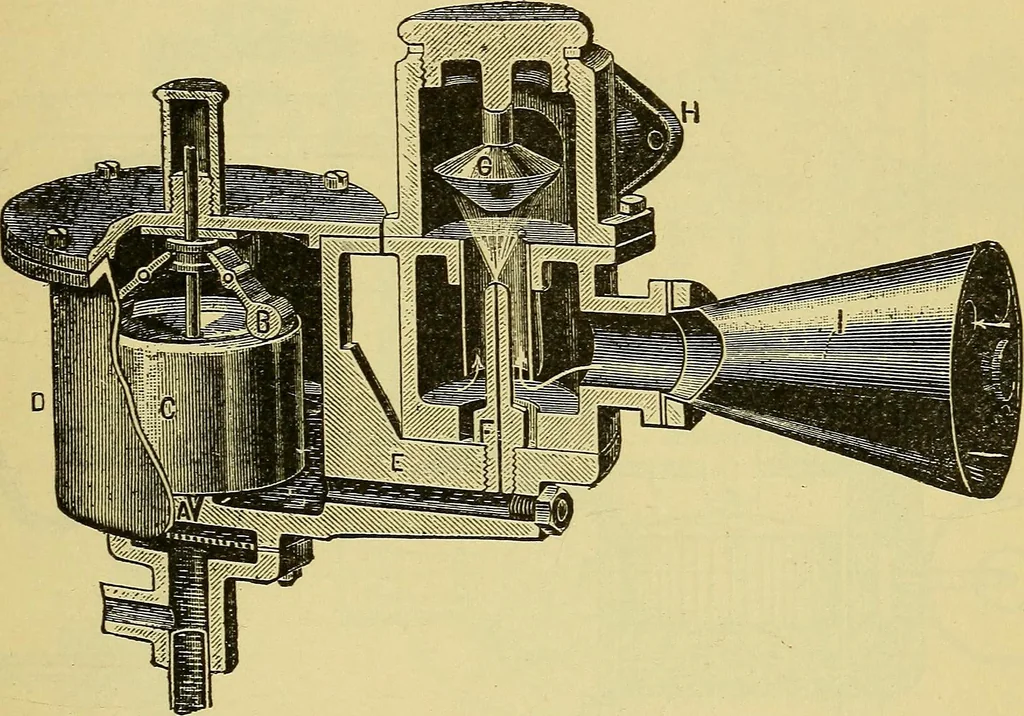

ler car-riages, and also on those manufactured in France by the firm ofPanhard-Levassor, are in several respects similar to the one lastdescribed. In these carburetters the spindle of the needle-valveis passed through the tube in the centre of the float. From thetop of the gasoline chamber hang two… … Fig. 170.— The Phenix Daimler Carburetter. A is the gasoline needle valve; B, theweighted controlling levers; C, the float; D, the float chamber; E, the gasoline sup-ply tube; F, the spraying nozzle; G-, the mushroom spray deflector; H, the portleading to the cylinder chamber; I, the air inlet. The…
