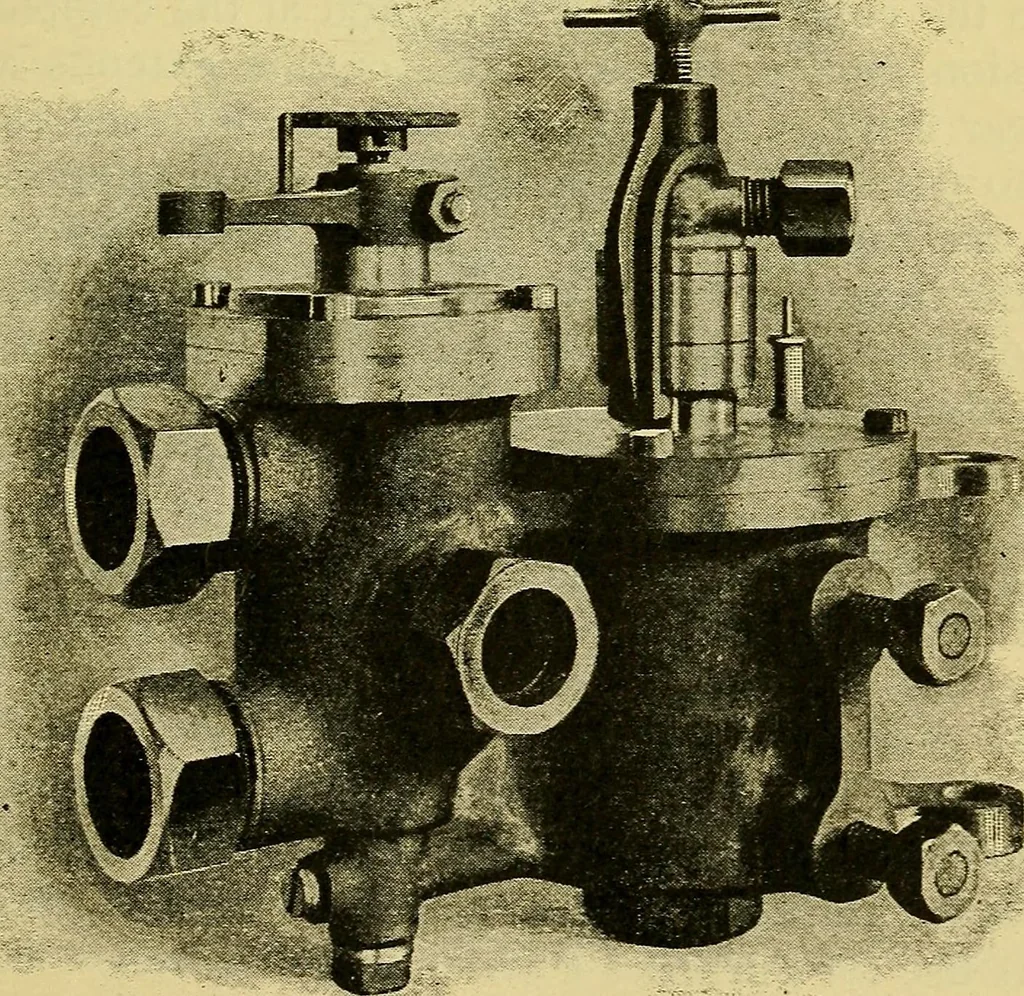

ried, through the channel at the left-hand lower por-tion of the annular jacket, to the chamber directly behind the in-let valve, as shown. At the suction stroke of the piston, the oiland air mist is drawn into the cylinder clearance, together withadditional air coming through the tube shown at the… … Fig. 177.—A Typical Float Feed Carburetter This cut gives an outside elevation orthe instrument shown in section in Fig. 135. CHAPTER TWENTY-ONE. ON THE SEVERAL METHODS OF FIRING THE CHARGE INA GAS ENGINE CYLINDER. Firing the Charge in Cylinder.—As already stated in aprevious section, the fuel…
