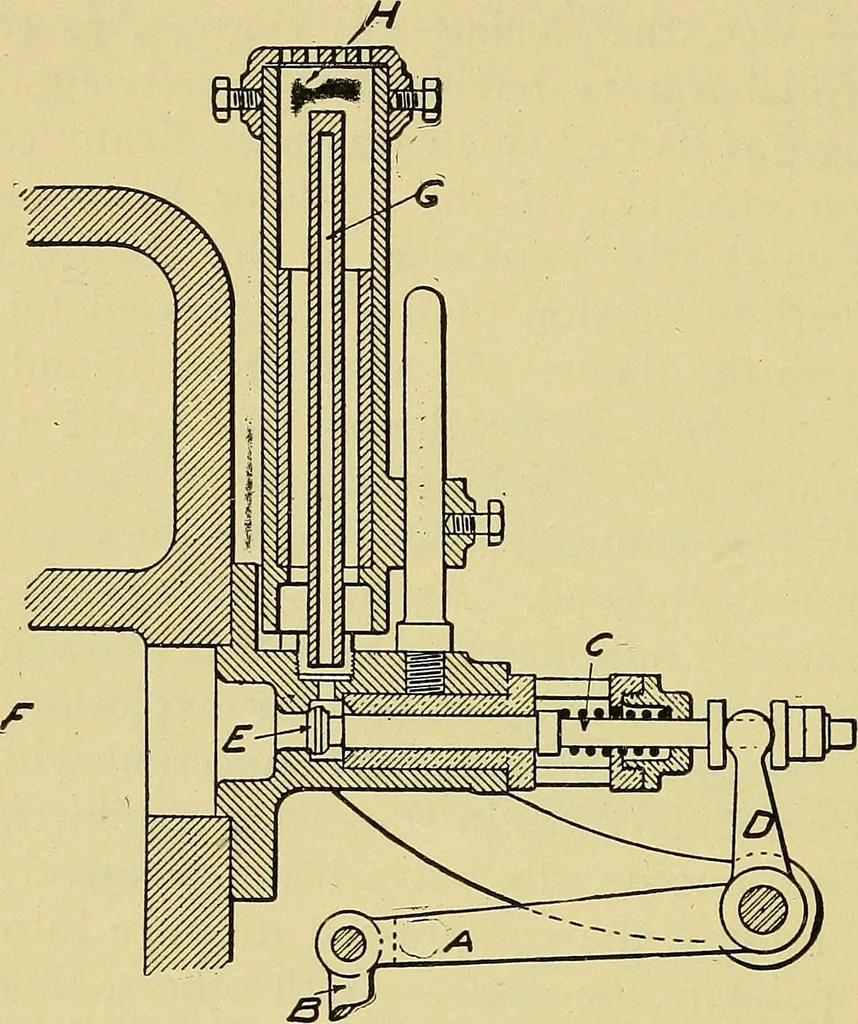

rodis again actuated from the cam-shaft. 264 SELF-PROPELLED VEHLCLES. Troubles with Hot=Tube Ignition.—In most gasoline vehicleengines using the hot-tube ignition, there is no provision, suchas a geared timing valve of the general description noted above.Consequently, the hot tube opens direct into… … Fig. 180.—A Hot Tube Igniter, with a Geared Timing Attachment for Reg-ulating the Point of Firing. G is the hot tube enclosed with a cylin-drical case having a perforated cap, H, at the top. The heat of thetube is maintained by a gas flame within the cylindrical case. Thelink, B, operates the…
