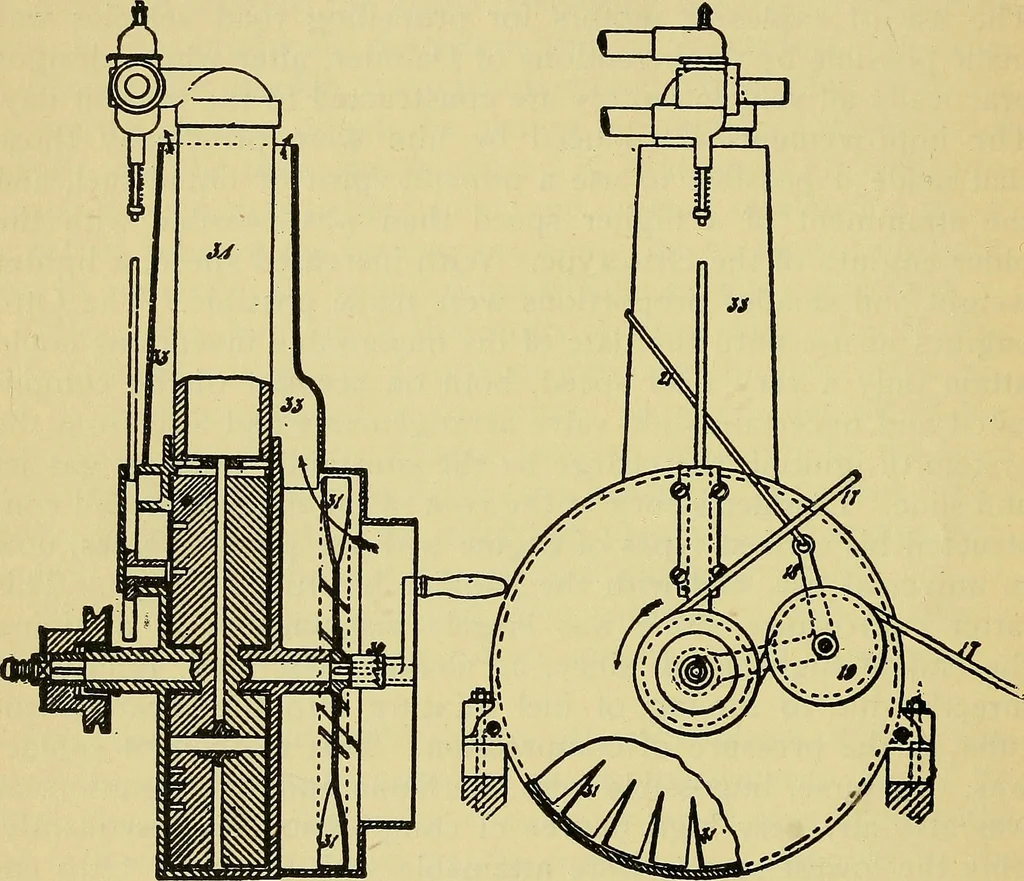

inst a vacuum created by the out-stroke of thepiston, as in all gasoline cylinders of the present day. His ex- 297 298 SELF-PROPELLED VEHICLES. haust valves were positively operated with the familiar cam-actuated push-rod, although the cam mechanism, instead of work-ing on a secondary shaft, as at… … Fig. 220.— Diagram of the earliest Daimler Gasoline Motor; used on Daimlers firstbicycle. The parts are indicated by numbers as follows: 17 is the driving belt f>assing around the pulley on the main shaft and tightened by jockey pulley, 19, andink, 21. 31 is a rotary fan, consisting of a number…
