Twentieth century handbook for steam engineers and electricians, with questions and answers; a practical nontechnical treatise .. (1916)
Swingle, Calvin F. (Calvin Franklin), b. 1846 · Chicago, F.J. Drake & company · leaf 751

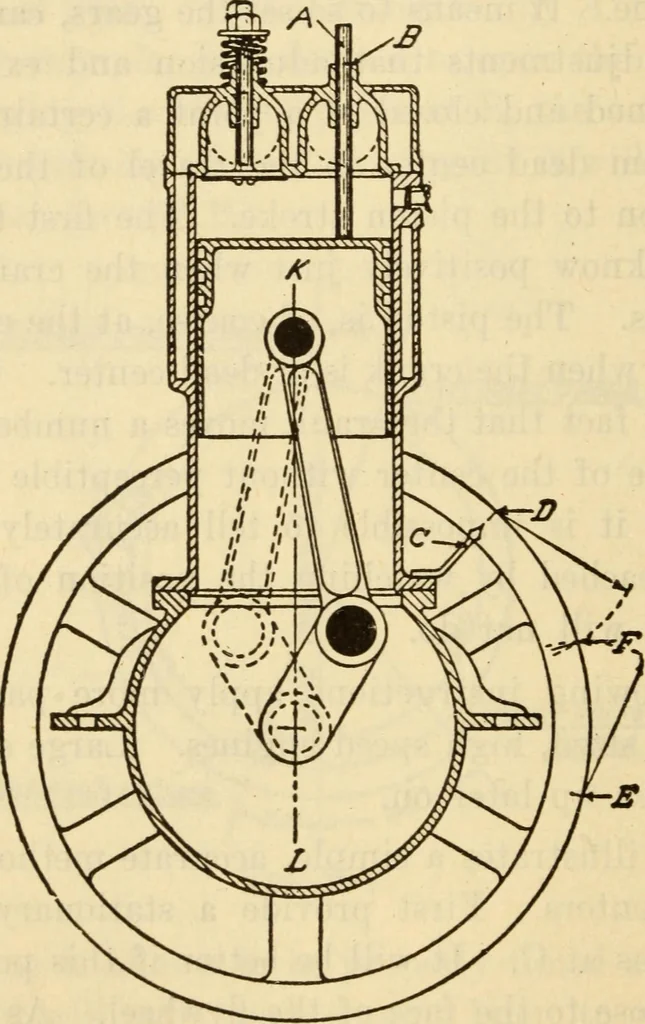

e in the head lettingit rest firmly against the piston; make a mark on the faceof the flywheel at D as indicated by the stationary pointer,C; also make a mark, B, on the rod, A. Now turn the 734 Steam Engineering crank to the other side of center as shown by the dottedlines; when the mark, B, on… … Fig. 305 as indicated by the pointer C. As marks D and E are atequal distances on each side of center, it follows that inbisecting the distance from D to E, as shown, and bringingthe central mark, F, to the fixed pointer, C, we will bringthe crank to the exact dead center for that end of the…
