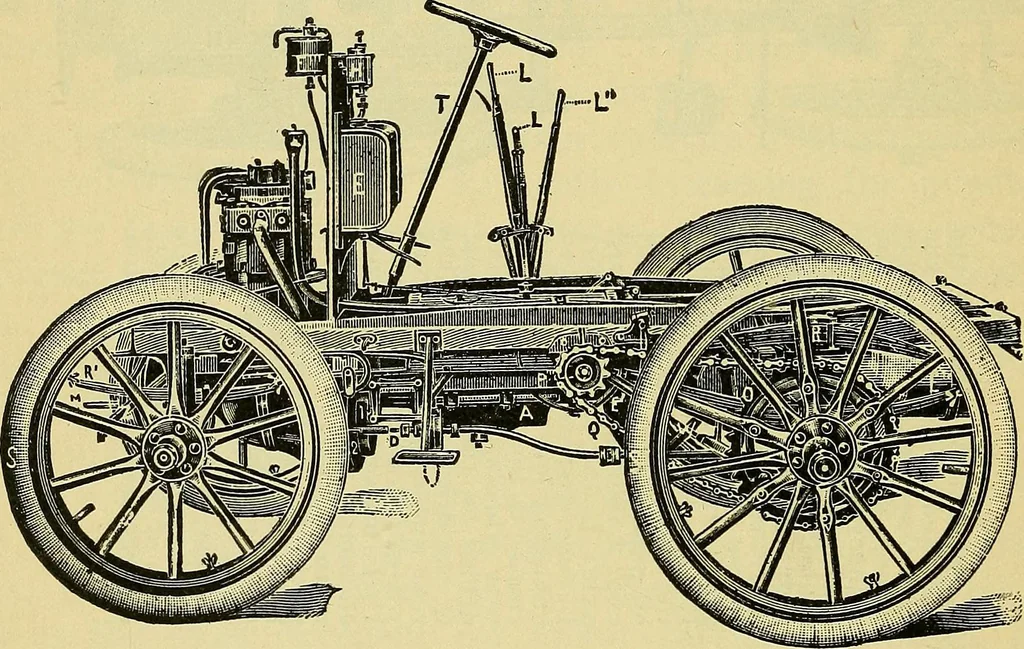

riages, also, this firm devised and constructed the speed-changing gear, which will be described on a later page under theirname. A very similar structure was used on the Peugeot car-riages, the principal difference lying in the fact that the reversemotion was accomplished by throwing into gear an… … Fig. 265.—Side Elevation of the Panhard-Levassor Six-horse-power Carriage.A, the transmission gear case; E, the gasoline tank; H, oil pump; L,lever for throwing out clutch; IV, reversing lever; L, change-speedlever; M, starting crank; O, rear wheel sprocket; V, sprocket pinionon jack shaft; Q,…
