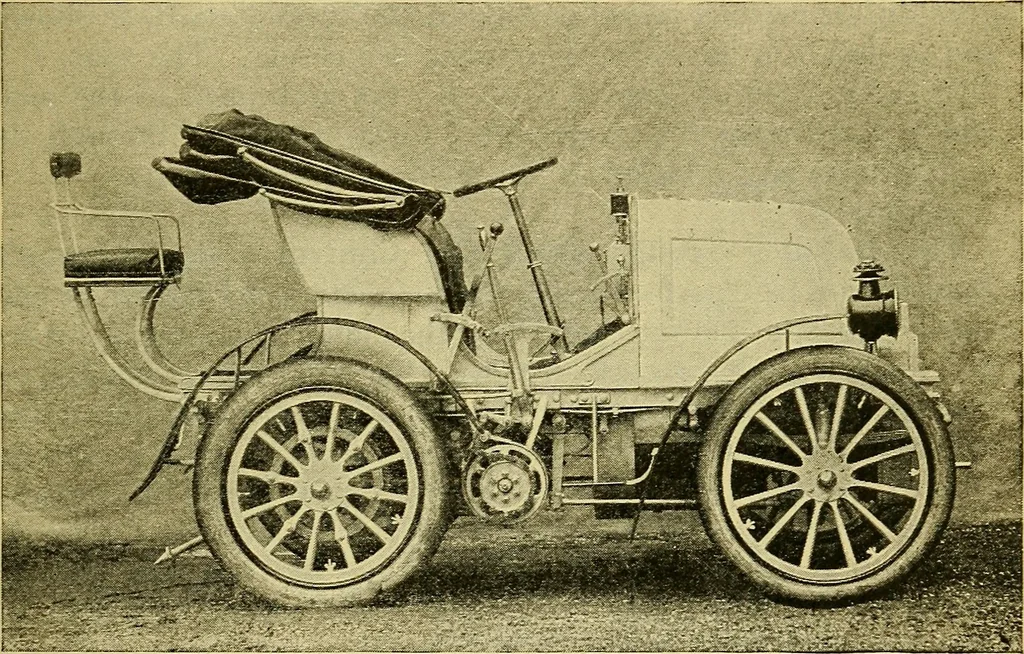

thelever, acting on the spool, K, so that H is pushed out of meshwith G, and L is thrown in. By this process, as is obvious al-though the rotation of G continues in the same direction, themovement imparted to L will be the reverse of that previouslyimparted to H. Thus the reverse has the same… … Fig. 269.—Two-seated Pleasure Carriage for General Use.Cannstadt-Daimler Co. Built by the will be thrown off altogether. This is the operation necessarilypreceding the throwing on of the brake, the drum of which ison the countershaft, just beyond the thimble, H. On the later models of Panhard…
