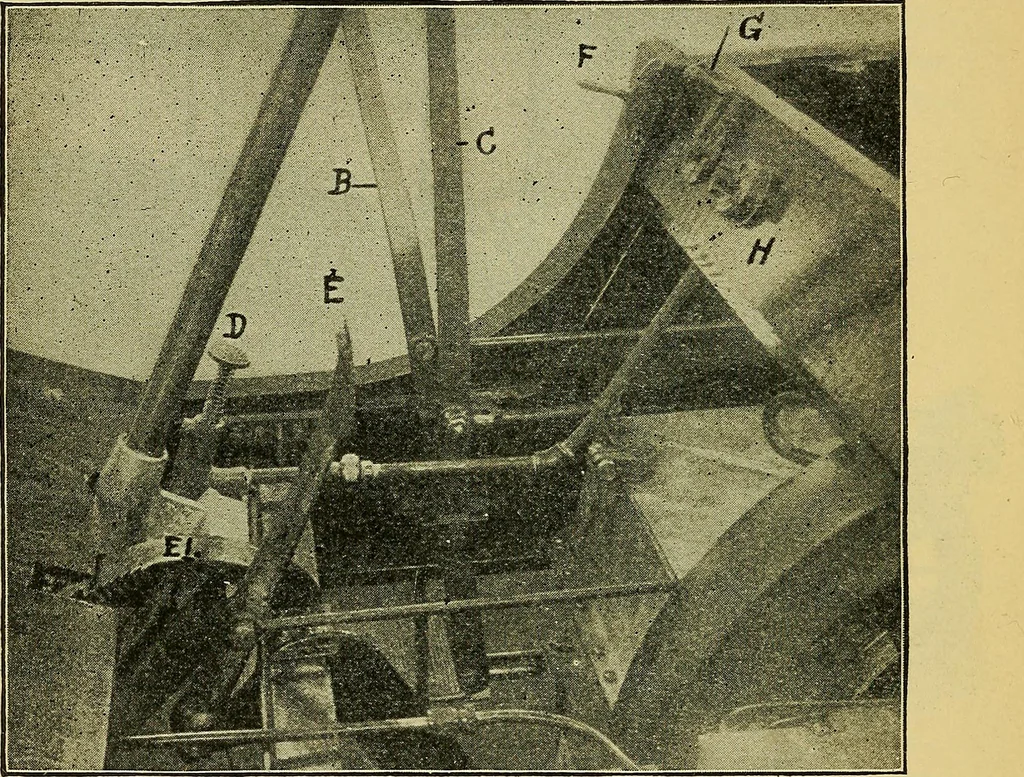

body and the running gear. 368 SELF-PROPELLED VEHICLES. The driving connections are direct from the sprocket, keyed toa sleeve on the main shaft, to another sprocket on the differentialgear drum on the rear axle. The operations of throwing on thepower and changing the speed is accomplished by two… … Fig. 280.—Winton Pedals and Levers, foot board removed. B, outside handlever, pulled to backward extreme clutches high speed into action, idlein mid-position, forward extreme, applies emergency brake to motorshaft brake drum. C, inside hand lever, forward extreme, engages back-ing gear, rear…
