Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 390

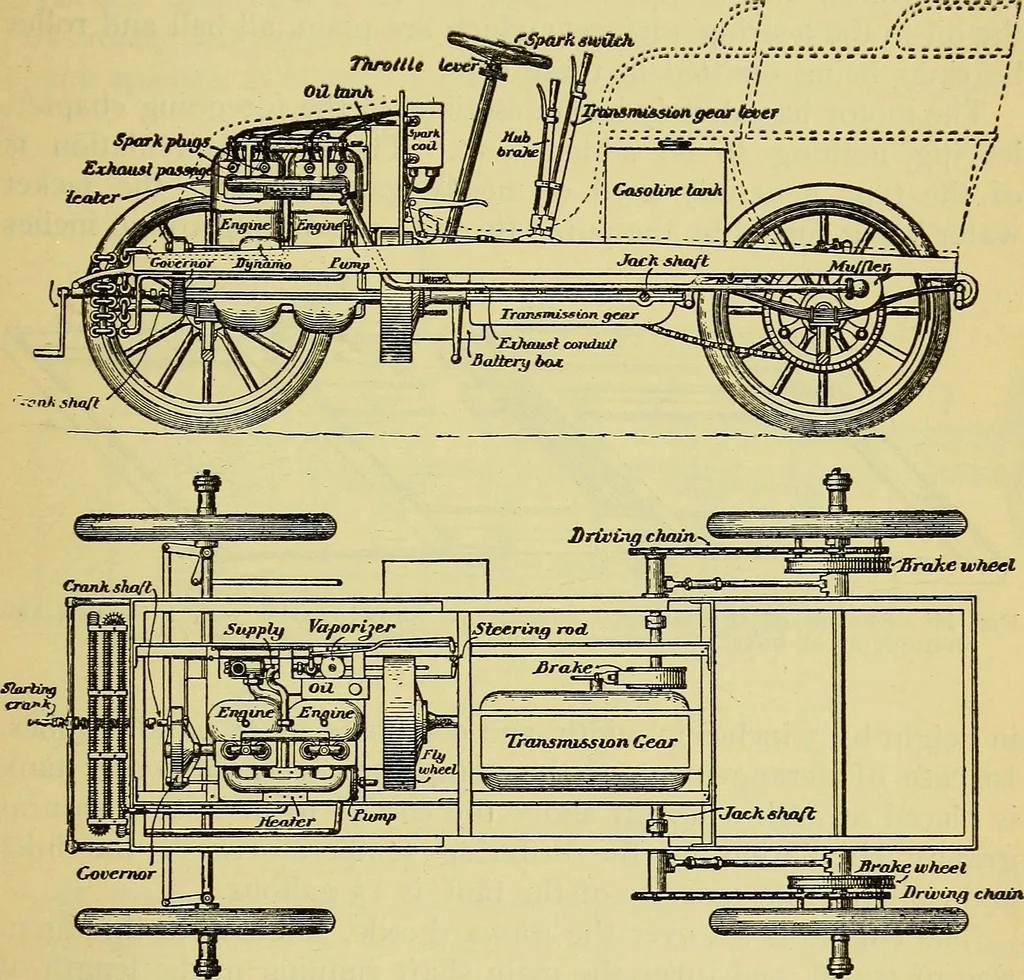

le. It com-bines many features of exceptional excellence, as regards both TYPICAL GASOLINE CARRIAGES, 377 construction and operation. Two sizes are manufactured—anine-horse-power, with a two-cylinder motor, and a sixteen-*horse-power with four cylinders, both being susceptible, accord^ing to claims… … Figs. 286, 287.—Side Elevation and Plan of the Riker-Locomobile Chassis. The Chassis and Running Gear.—The frame of the vehicleis of channel steel bars of rectangular shape, and suitably bracedat points intended to carry the greatest weights. It is, more-over, tapered at either end by shaving off…
