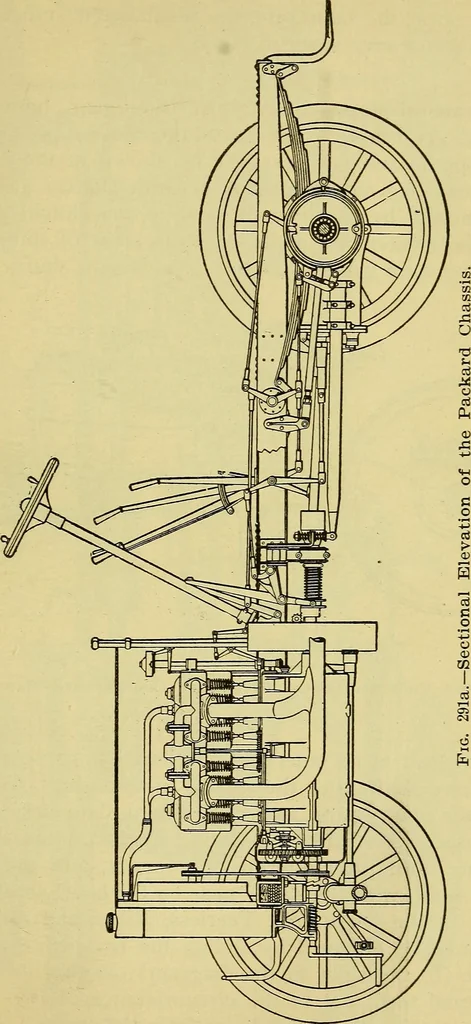

ged between the two ends thatthe whole ring may be expanded and made to bear against theinner surface of the drum. As may be understood from an ex-amination of the sectional elevation of the Chassis, the cam willexpand the ring, if the lever be carried to an extreme position,either backward or… … 384 SniF-PROPniLED VBB1CLBS. tern, and are actuated by a backward pull on the lever. If bothbrakes be set at the same time the resistance is sufficient to stopthe car within a very small distance. The Transmission.—The transmission gear, hung just for-ward of the rear axle, is of the sliding gear…
