Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in constructive and operative machinery and the mechanical arts, being practically a mechanical dictionary, commencing with a rudimentary description of the early known mechanical powers and detailing the various motions, appliances and inventions used in the mechanical arts to the present time, including a chapter on straight line movements, by Gardner D. Hiscox (1914)
Hiscox, Gardner Dexter, 1822?-1908 · New York, The Norman W. Henley publishing co. · leaf 150

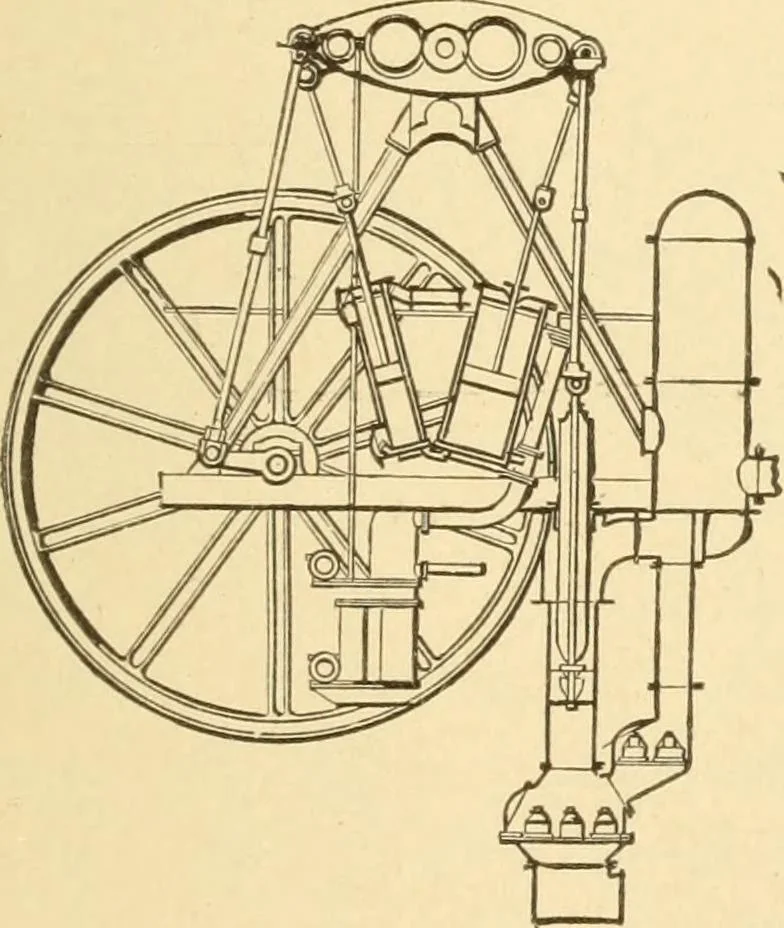

503. POWER OF WATER.—Appara-tus for measuring the force of a water jetwhen turned to a right angle by a benttrough, a, A spring scale. The verticalforce is weighed on the platform scale,the horizontal force by the spring scale. … 504. COMPOUND BEAM PUMP-ING ENGINE for water works. Thehigh- and low-pressure cylinders are in-clined, to make room for direct connec-tion of the pump and crank rods.
Mechanical movements
