Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 404

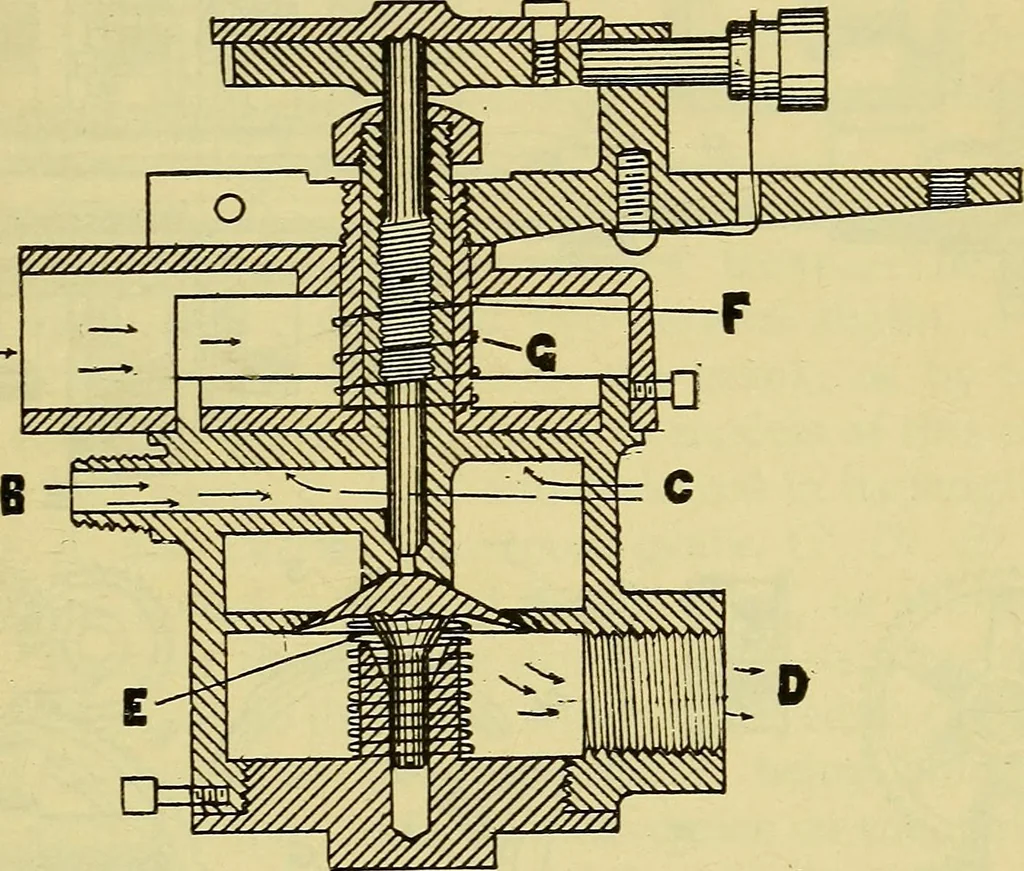

OLINE CARRIAGES. 391 gine and other parts. All shafts turn in roller bearings, whichgive superior endurance, and are arranged to take all end thrustswithout the use of balls. The Carburetter and Throttle.—The fuel gas is supplied tothe two cylinders of the engine by two separate carburetters,… … Fig. 300.—Sectional Diagram of the Haynes-Apperson Throttling Mixer. A,air inlet; B, gasoline inlet; C, C, location of air ports into mixing cham-ber; D, vapor exit to engine; E, mushroom valve held on seat by spring,opened by suction of engine piston; F, threaded needle valve spindle; G,spring for…
Automobiles
