Cyclopedia of locomotive engineering, with examination questions and answers; a practical manual on the construction care and management of modern locomotives (1916)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co., pub. for Sears, Roebuck & co. · leaf 656

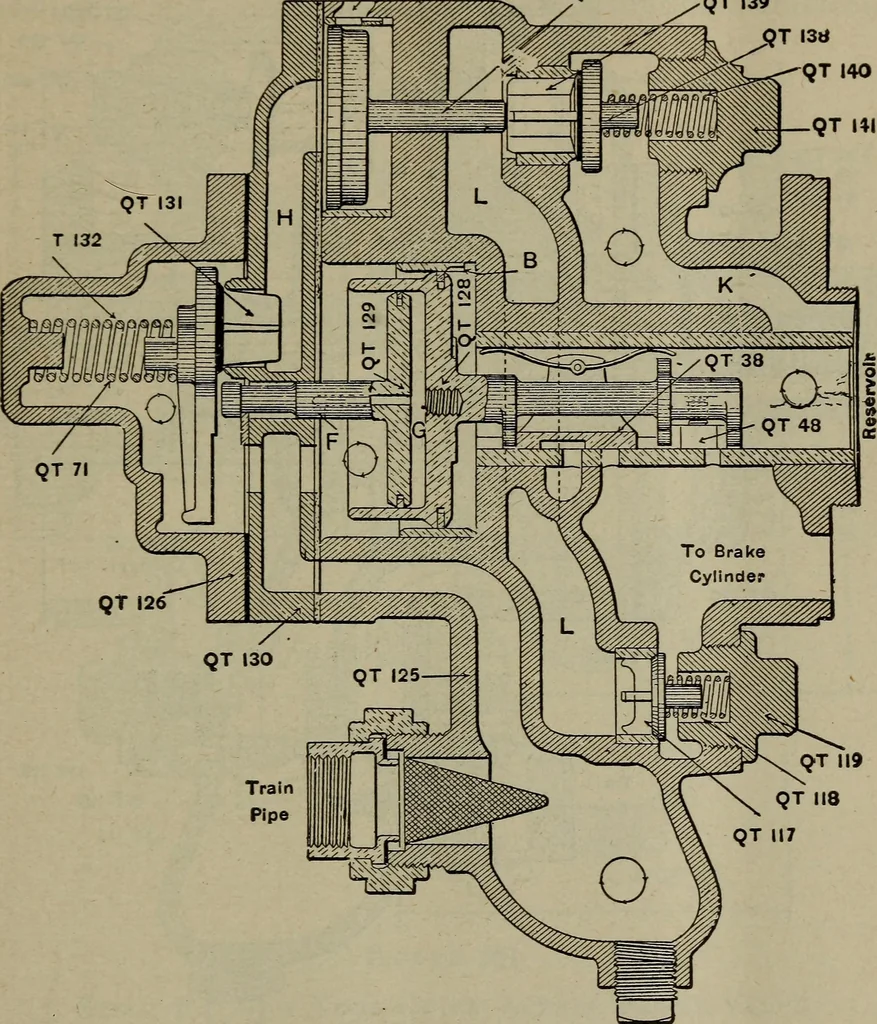

ull stroke, ithas not disturbed the rubber-seated vent valve 131,but has moved the graduating slide valve 48 to aposition which opens the supply port from theauxiliary reservoir to the brake cylinder, and at thesame time has moved the exhaust slide valve 138 for-ward, and closed the exhaust port… … Figure 259New York Quick Action Triple Valve, Service Lap Position quently when the auxiliary pressure has reduced to adegree slightly less than trainpipe pressure, the airthat is confined in chamber G expands and forces the 6io LOCOMOTIVE ENGINEERING main piston back a slight distance. This causes…
Locomotives
