Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)

Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 422

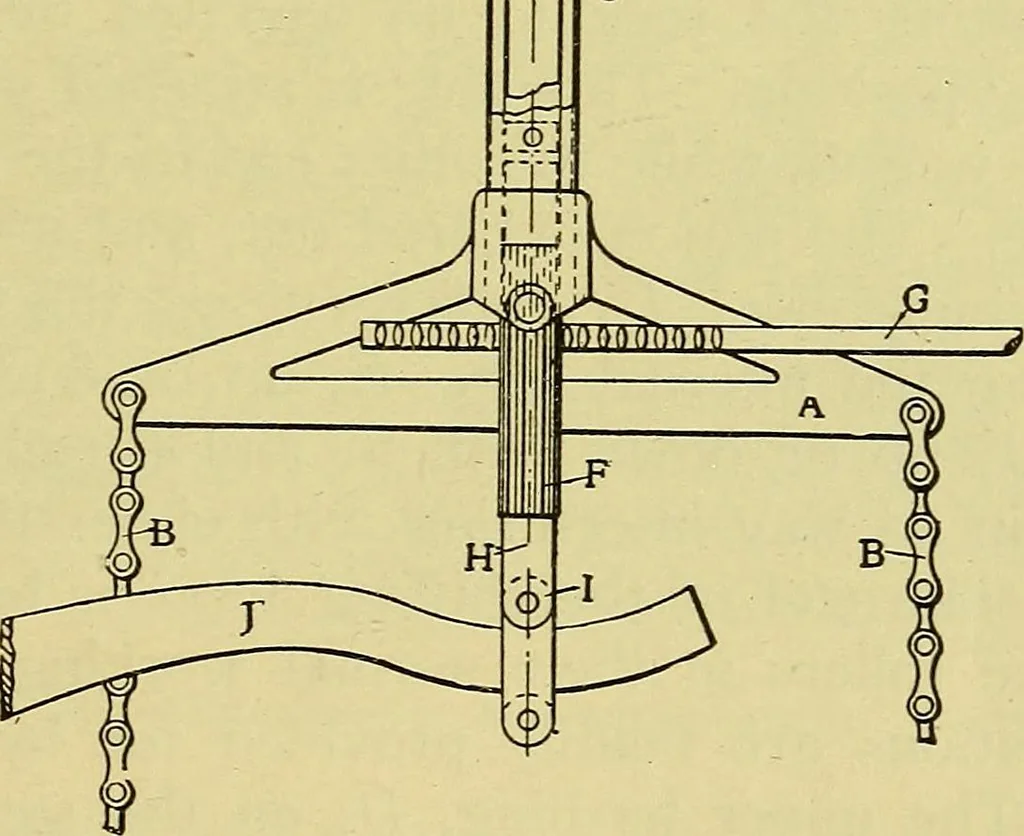

An illustration from Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles, 1906, leaf 422 — K- … Fig. 315.—Central Control Lever for Steering, Throttling- and Operating- theClutches. When arm, J, is raised by an upward movement of handle,N, the low clutch, is set; when depressed, the high clutch is set; inneutral position, both are thrown out. The reverse is operated by a footpedal. leasing…
