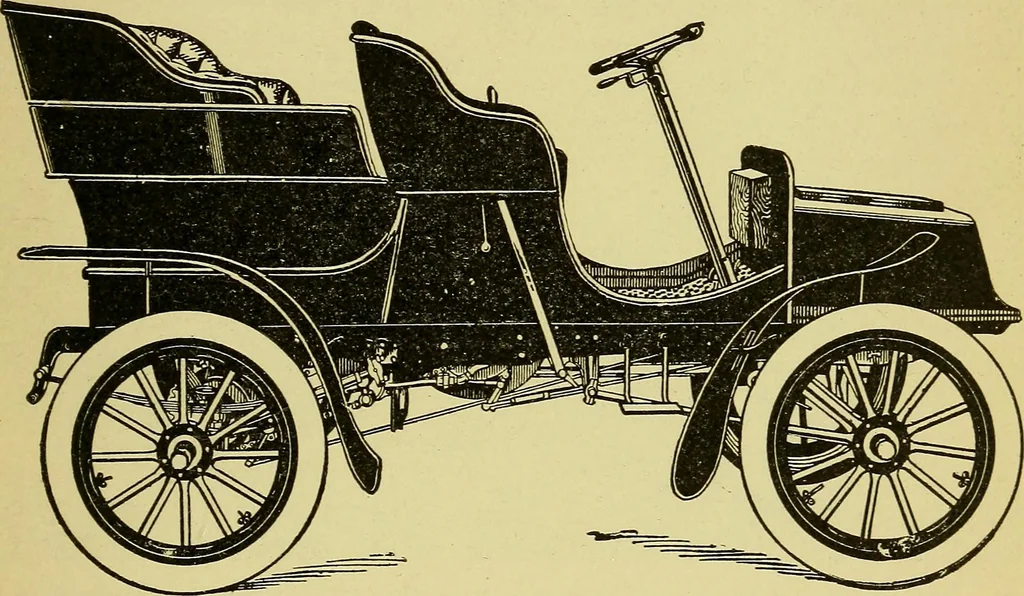

con-nected by a link (23) to the throttle arm, and moves the cam(25) as already explained in connection with the figure of theengine. By this means the volume of the charge may be con-stantly regulated. The spark lever, (15) set at the right of thedrivers seat, furnishes another means of regulating… … Fig. 322.—Cadillac Car, with Rear Entrance Tonneau. steering pillar. The pedal at the right acts upon the main brakeon the differential drum. When it is pressed upward and for-ward, it rotates the short transverse shaft to which it is attached,causing an arm to rise and exercise a pull upon a…
