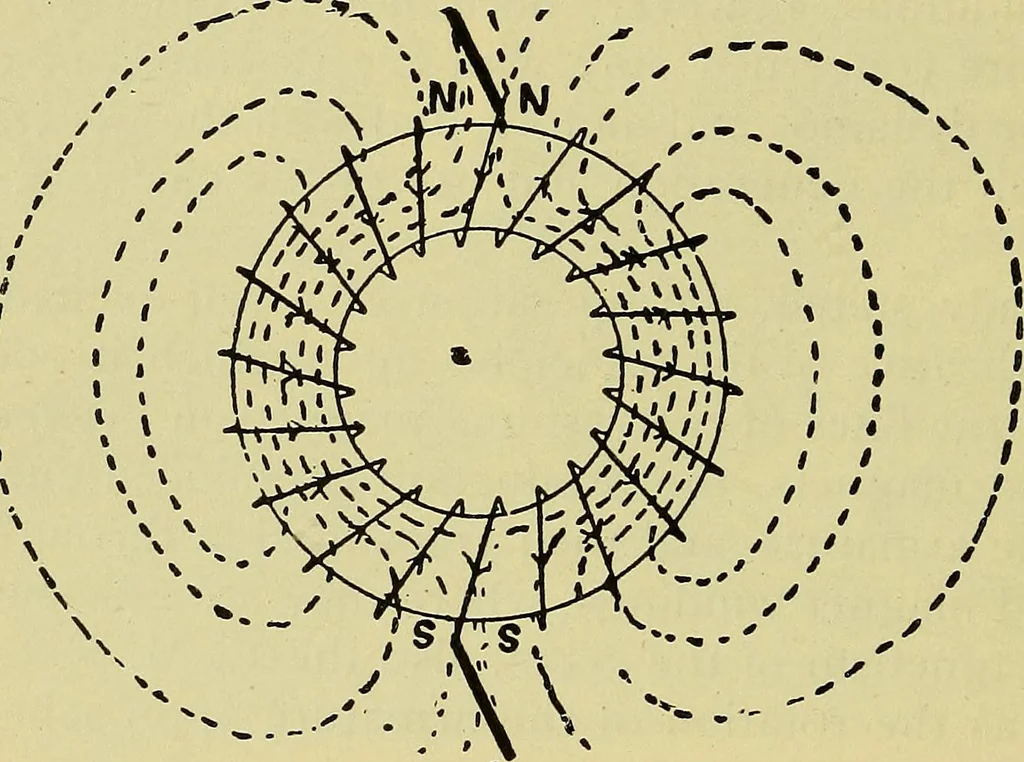

An illustration from Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles, 1906, leaf 459 — tically operating as a single pole, at the two extremities ofthe given diameter, act to produce the great distortion of thelines of magnetic force, which follow the rotation of the arma-ture. As shown in an accompanying diagram, these lines offorce are twisted into an oblique direction. This result… … • » PrSwJ Fig. 337.—Diagram of the Polarization of a Rotating Dynamo Armature of the RingType, showing directions of the lines of force and of the induced current. tation, the result would be short-circuiting of the armature coil.This distortion of the magnetic field, which is an important agentin…
