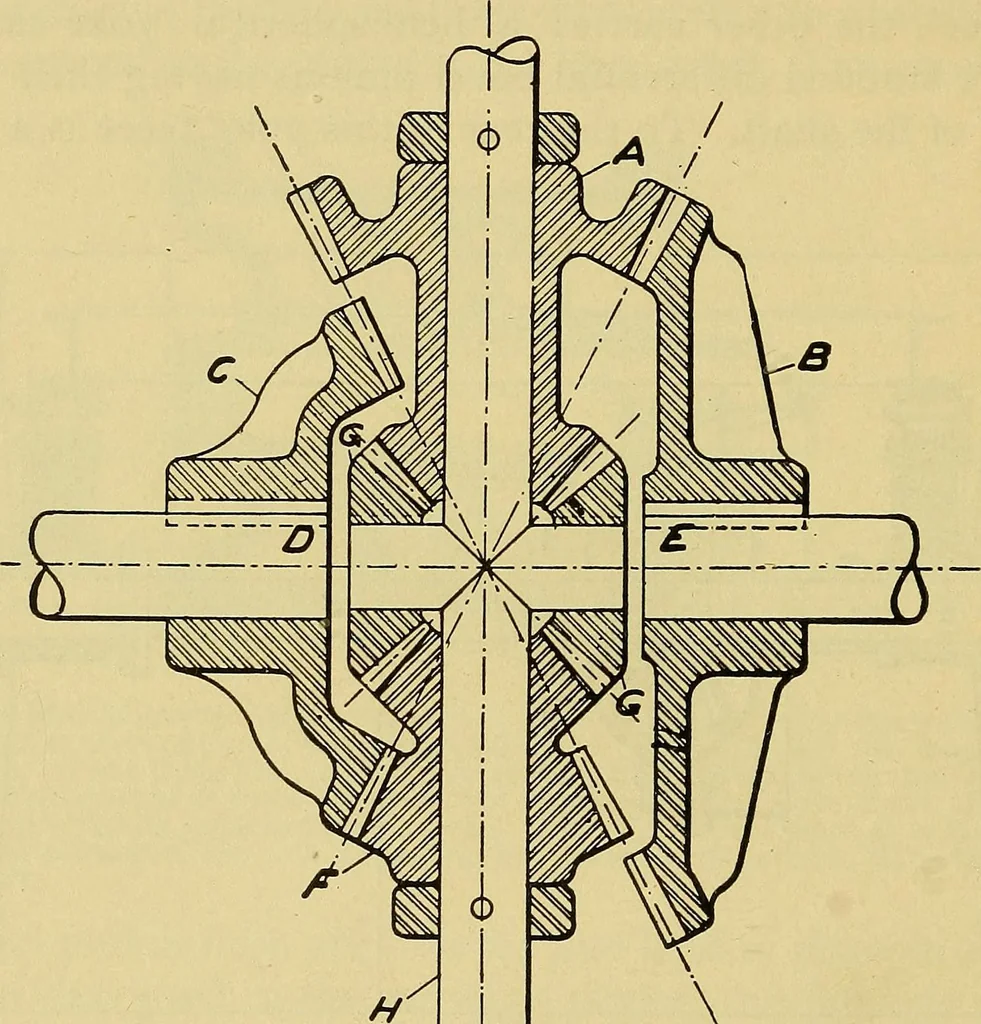

nions, as in other systems ofcompensating mechanism. One of these gear wheels, the inner 34 SELF-PROPELLED VEHICLES. one, is keyed to the solid through axle shaft, and turns or stops,according to the motions of the opposite wheel of the vehicle.The other is keyed to an in-flanged sleeve on the hub,… … wO Fig. 30a.—Plan view of a type of differential and transmission gear for permitting theuse of dished wheels. H is the driving shaft, which drives the bevels, B and C, onthe two half axles, D and E, through the bevels, A and F. These last are loose on H,being held rigid by intermeshing with…
