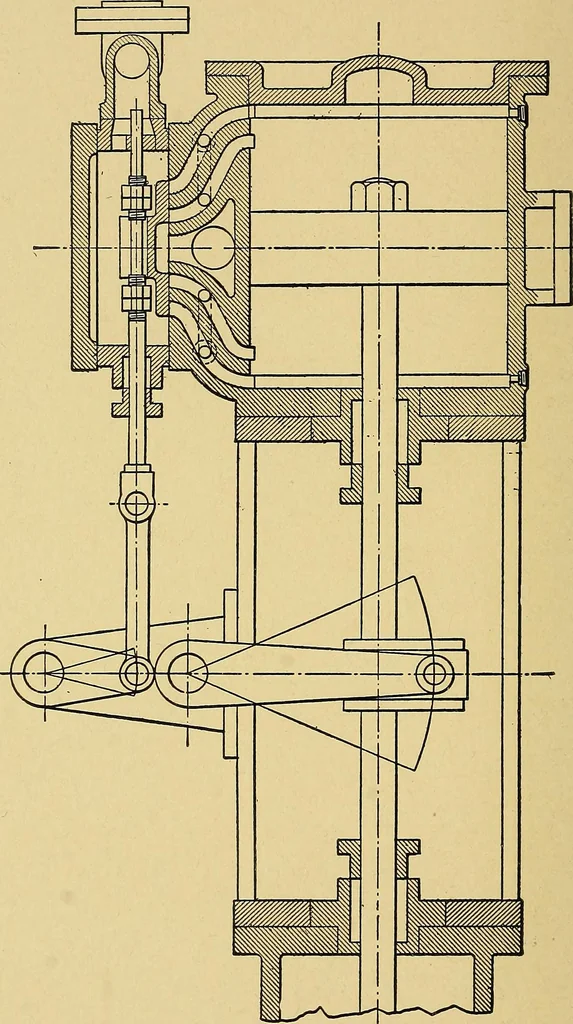

FIG. 183. is a connection, provided with a valve, between the two high-pressure ex-haust pipes. The object of this connection is to equalize the pressure in 182 VALVE SETTING these exhaust pipes and make it more uniform. This is called the crossexhaust, and its influence on the distribution of… … FIG. 184. tional plans of the steam cylinders of a compound pump, with the pistonsin positions that correspond to lines A—B and B—C in the diagram Fig. THE DUPLEX PUMP 183 190. Fig. 189 represents a diagram with the cross exhaust closed. Thesteam pressure follows up the full stroke in the…
