Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)

Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 49

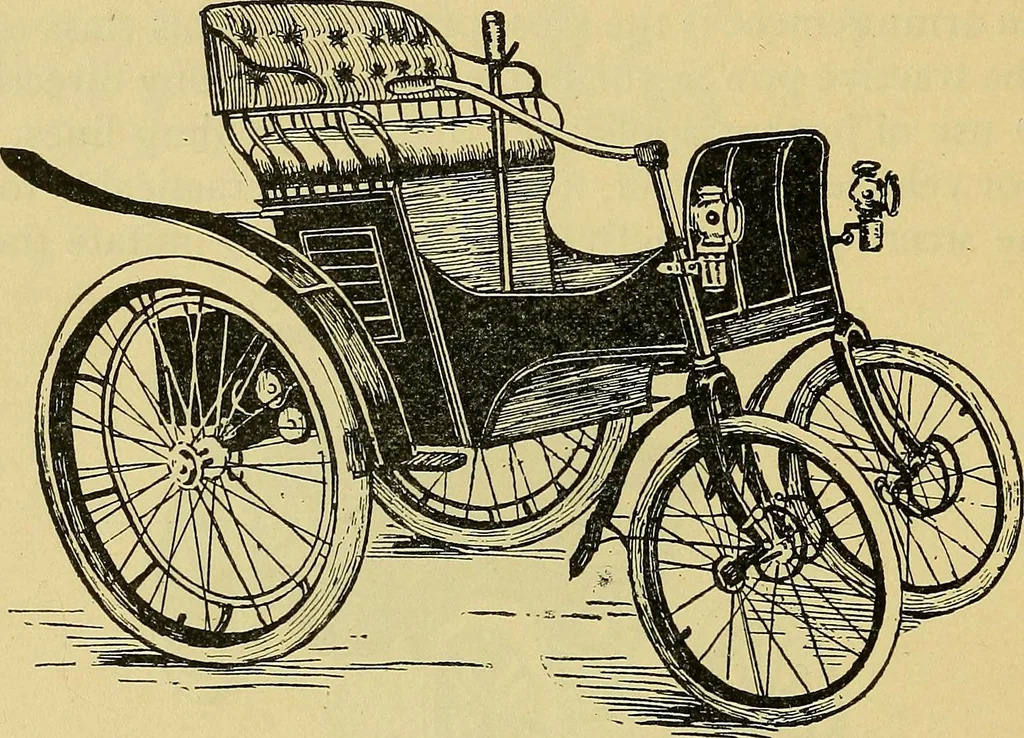

An illustration from Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles, 1906, leaf 49 — sor, in one of their light two-seated cars. Forgeneral purposes, however, the simplest and readiest construction 35. 36 SELF-PROPELLED VEHICLES. for attaining- easy steering, and at the same time securing theneeded stability of the frame, is found in the use of a rigidthrough axle shaft and… … Fig. 32.—The Oakman-Hertel Gasoline Carriage, showing the steer wheels set in and turned by bicycle forks. carries a fork, or yoke, to which is pivot-bolted, at right angles tothe axle shaft, so as to form a true knuckle-joint, a boss carryingtwo branches, one of them of cylindrical shape to fit…
