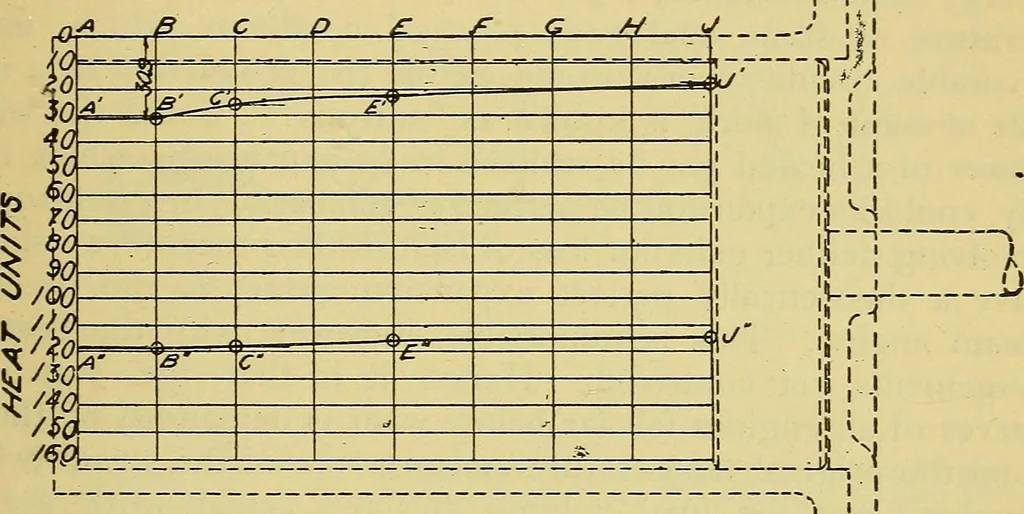

An illustration from Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles, 1906, leaf 544 — hich is laid downfrom E to E. To convert the water into steam, after it beginsto boil, will require 93.9 more units of heat, which is also laiddown from E to E. In the same way the total heat to boil andconvert 1-10 pound of water into steam at 60 and 120 poundspressure, as shown in the appendix,… … L_I_J Fig. 386. —Diagram showing the number of heat units required to raise one-tenth poundof steam under the various pressures indicated by the position of the piston, at fullstroke, half stroke and seven-eighths stroke. In using this diagram it is necessaryto note that the heat units are…
