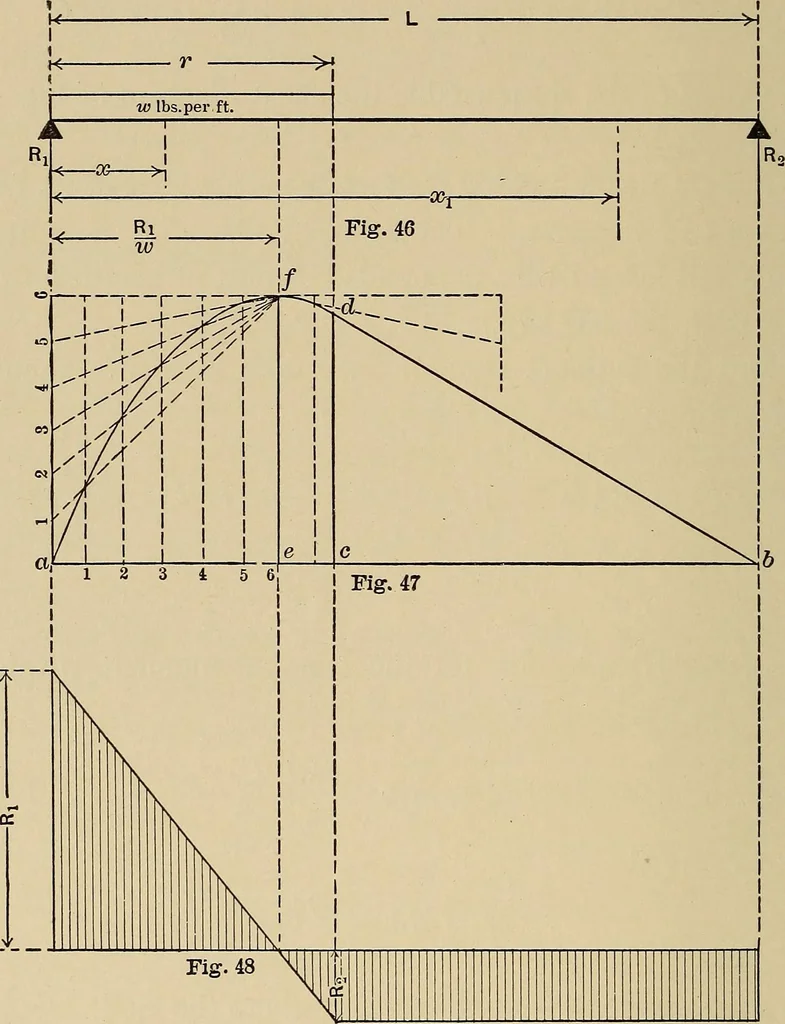

in thelimits of the loaded part of the beam is ,2 For X = rwe get ,, o WX M = Rix 2 as the bending moment at the section where the load ceases. On the base line ab, Fig. 47, erect the ordinate cd under the section of the beam at the right extremity of the loaded part, wv^ ( t\and make it equal in… … the equation of a straight line which gives a zero value for Mwhen Xi = L. The triangle hcd, therefore, is the diagram of thebending moments for the unloaded part of the beam. BENDING-MOMENT AND SHEAR DIAGRAMS 47 The maximum bending moment will evidently occur at somesection within the limits of…
