Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 585

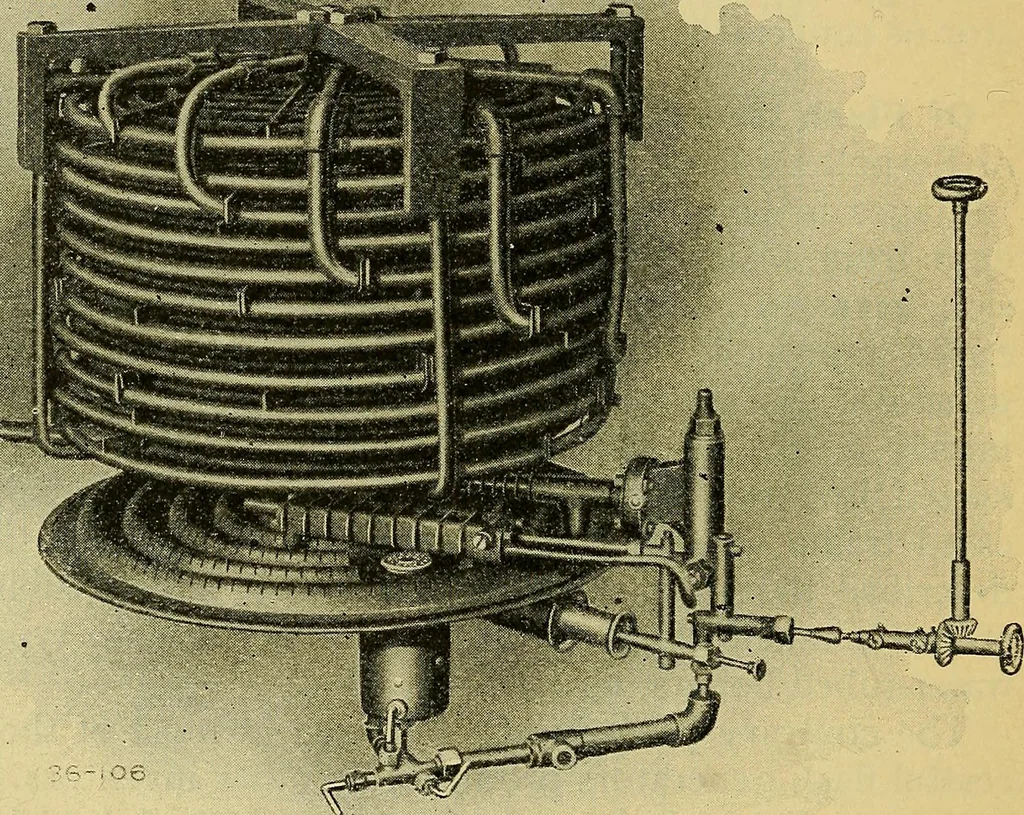

tubes of sufficient ca-pacity to vaporize a good quantity of water, surprisingly hightemperatures may be obtained in a short time and high power 572 SELF-PROPELLED VEHICLES. engines may be driven with perfectly dry steam. In these par-ticulars the flash generator is superior to a boiler of any… … Fig. 416.—Diagram Illustrating Arrangement of the Vaporizing Coils of the White FlashGenerator, Elevation. The water is fed into the centre of the top coil, flowing allaround that coil and, in series, through every other coil in succession. It isflashed into steam somewhere above the lower coils,…
Automobiles
