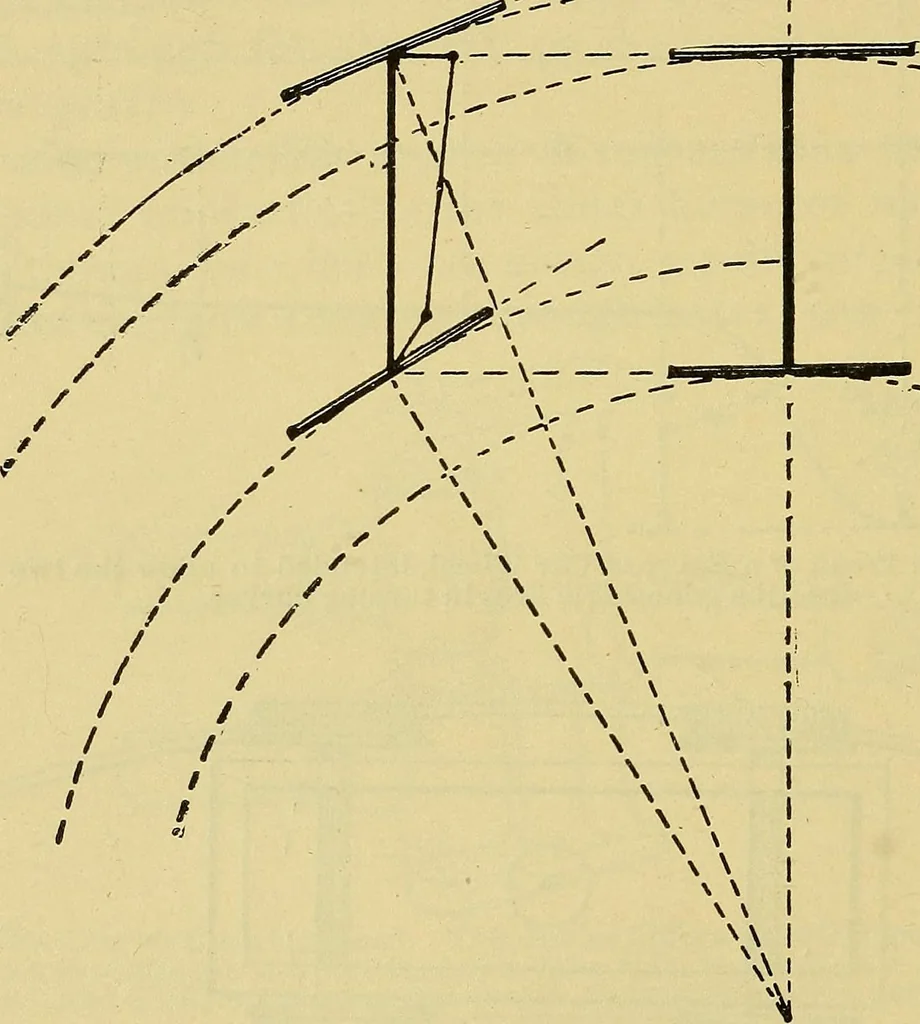

rails, or to the angular difference due to ele-vating the longer, or outer, rail of the track. 46 SELF-PROPELLED VEHICLES. Angles of the Steering Axles.—With an understanding ofthe positive necessity of providing some means to keep both thesteering axles of a motor carriage on radii from a common… … :r~ Fig. 44.—Diagram Illustrating the Position of the Steering Wheels in Turning. As willbe seen, they both are tangential to arcs described on a common centre, as is neces-sary in order to describe such concentric arcs and give positive steering, when themotive impulse is from behind. the two from…
