Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)

Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 595

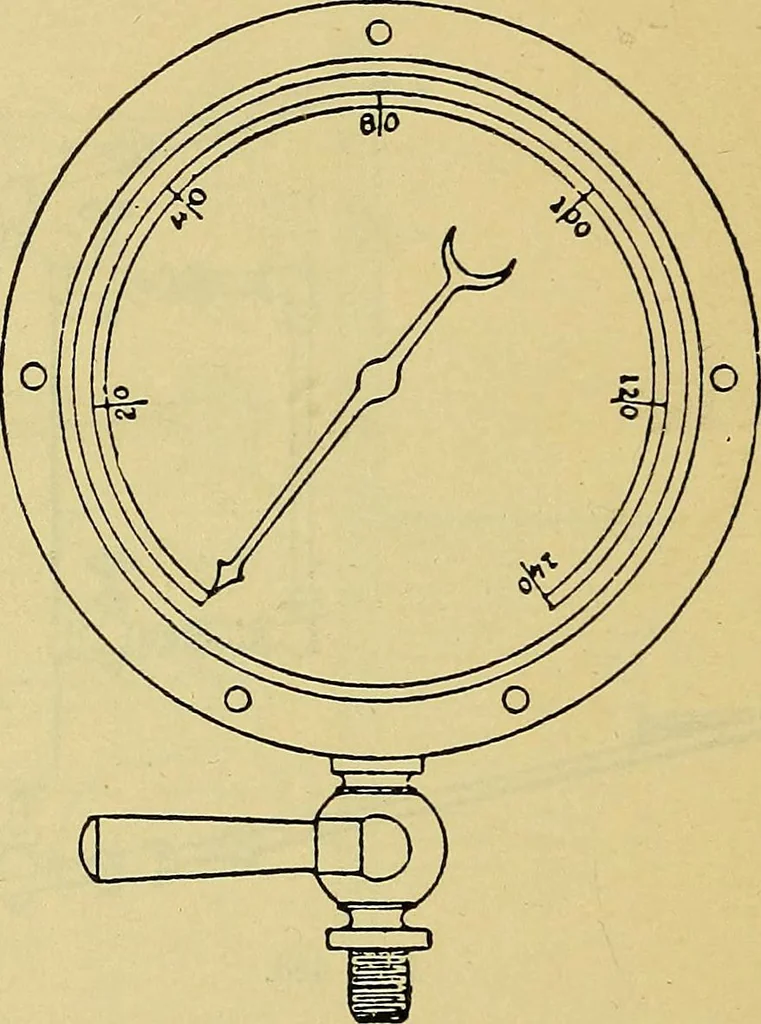

An illustration from Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles, 1906, leaf 595 — Fig. 425.—Interior View and Dial Face of one Type of Steam Gauge. Thesteam is admitted through the cock at the bottom of the dial box intoa flattened and curved tube, which it causes to straighten slightly by itspressure, thus operating the sector and the hand on the dial plate. This device…
