Self-propelled vehicles; a practical treatise on the theory, construction, operation, care and management of all forms of automobiles (1906)
Homans, James E. (James Edward), b. 1865 · New York, T. Audel & Company · leaf 615

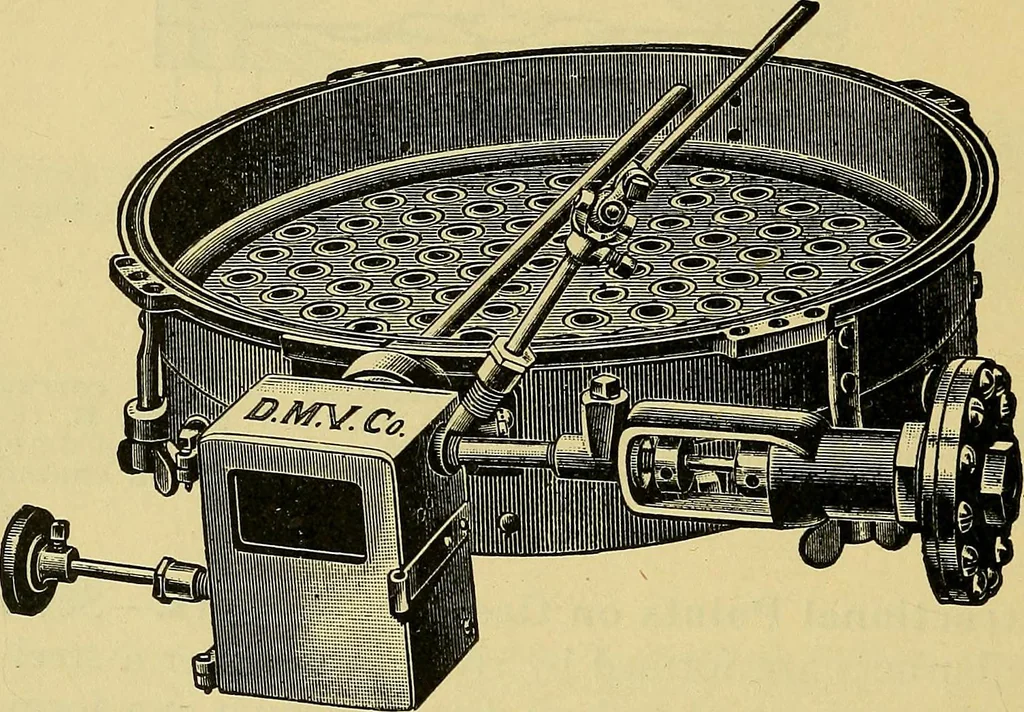

uniform in size. In addition to this air opening, acounter-bore is sunk in the top plate of the burner, and a steelwasher is fitted into it, leaving an annular opening for the passageof gas in the inside of the washer. The outside of the washerhas a number of small openings in it, so that each air… … Fig. 441.—The Dayton Burner, showing the Starter Box and Regulator inPosition. of chocking with rust, dust or carbonized particles, which is afrequent source of annoyance with pin-hole burners. An interesting variation on the common type of steam carriageburner is presented in the device used on…
Automobiles
