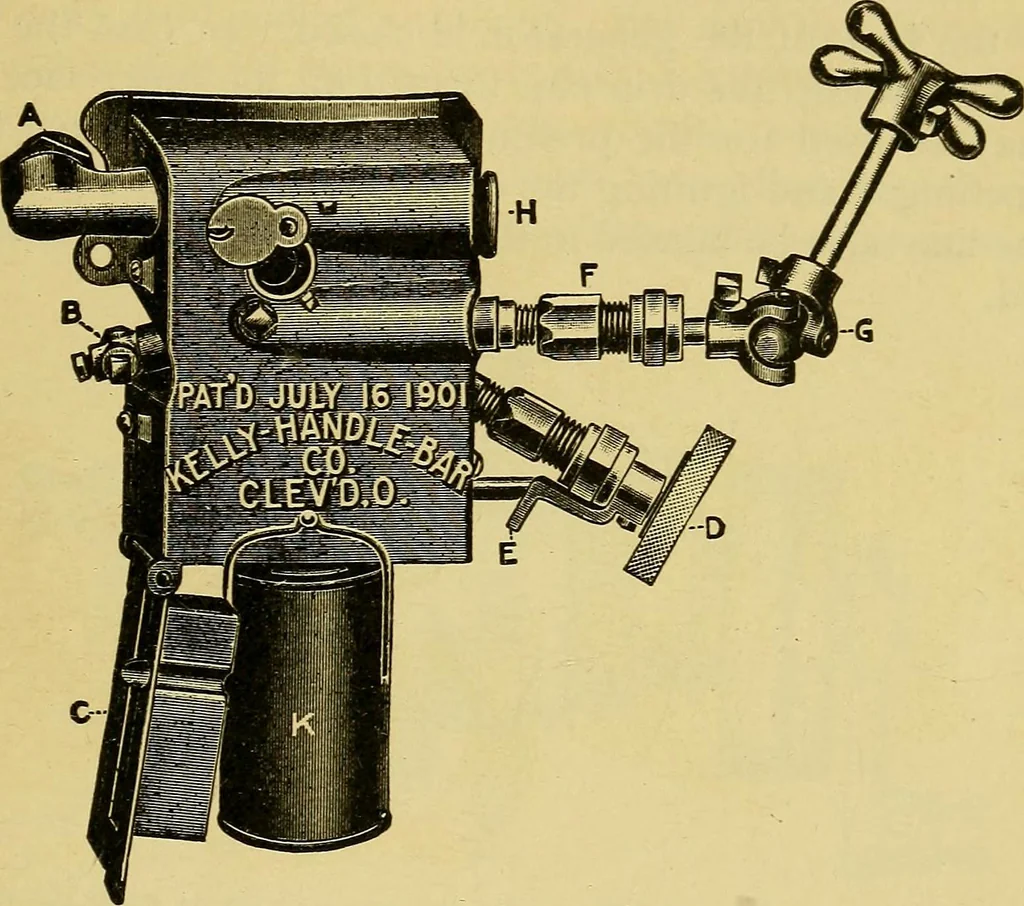

ng tube.By closing this valve, the main fire may be shut off, as desired, BURNERS AND REGULATORS. 607 although the pilot light continues burning, until extinguished byshutting off its supply of gas, which is never modified in any way,being out of reach of the automatic regulator controlling the… … Fig. 446.—The Starter Box and Control Valve of the Kelly Burner. A, unionjoint to supply pipe; B, gas orifice leading direct to the main burner;C, drop drip cup and bottom of case; D, sub-flame valve; E, check onvalve to prevent turning by vibrations of travel; F, packing nut on themain fire valve;…
