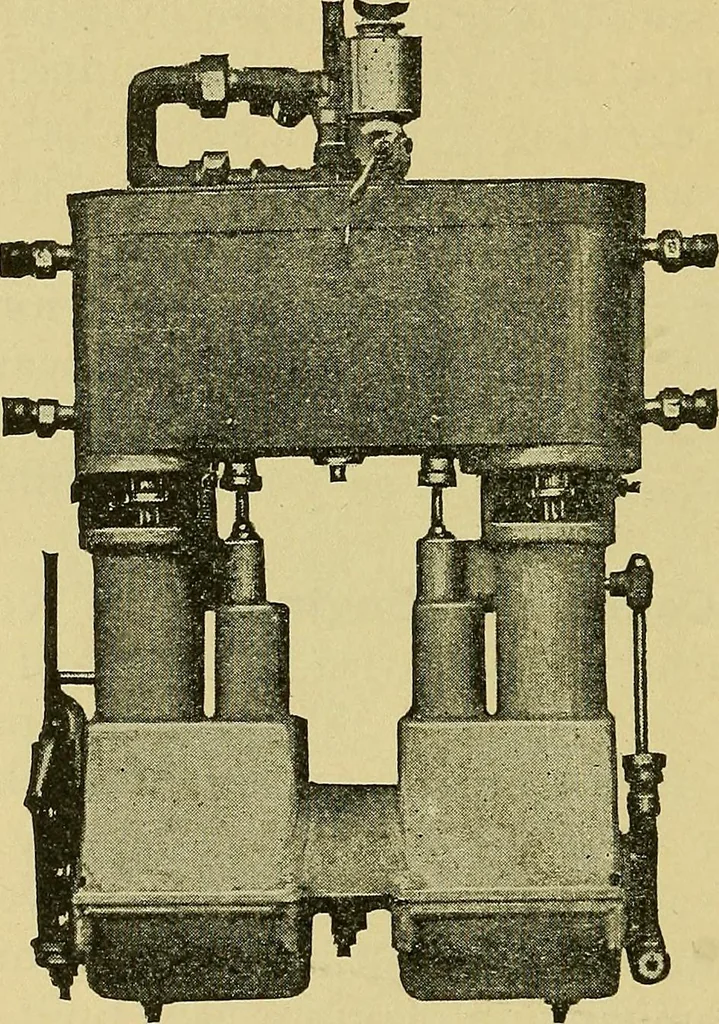

gular re-cess on its outer surface, besides the internal port extendingclear around the top, bringing into connection various passagesleading from the control valve chest to the high and the lowpressure valve chests and their exhaust ports. As shown in theillustration, the control valve stands at a… … Fig. 455. —Compound Engine of the Stearns Steam Carriage pound. In this position/therefore, the live steam from the boilerpasses from the control valve chest through the port just clearedby the control valve, to the high pressure steam chest, being-then distributed by the high pressure valve, as it…
