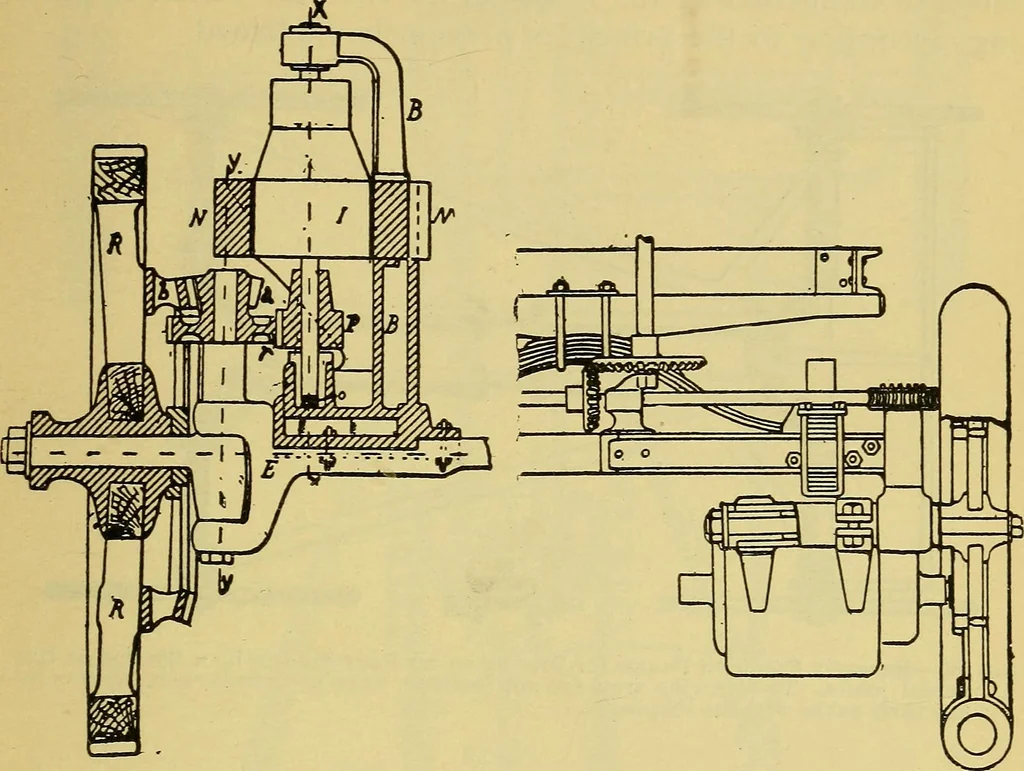

dby a spur pinion engaging an internally-geared ring secured tothe spokes of the wheel, and the whole device, axle, motor andwheel, being pivoted to the end of a rigid transverse bar, may beturned by the steering gear. The steering pivots are operated by 54 COMBINED STEERING AND DRIVING. 55 a worm… … Fig. 54. Fig. 55. Fig. 54.—Motor Steering Wheel of the Hurtu Cabs. A drag-link attached to the arm ofthe pivots can turn the wheels without disturbing the operation of the motor. Fig. 55.—Steering Motor Wheel Arrangement, by which a worm gear and pinion device,actuated as shown by bevel gears,…
