Aviation engines; design--construction--operation and repair; (1919)
Pagé, Victor Wilfred, 1885-1947 · New York, The Norman W. Henley publishing co. · leaf 125

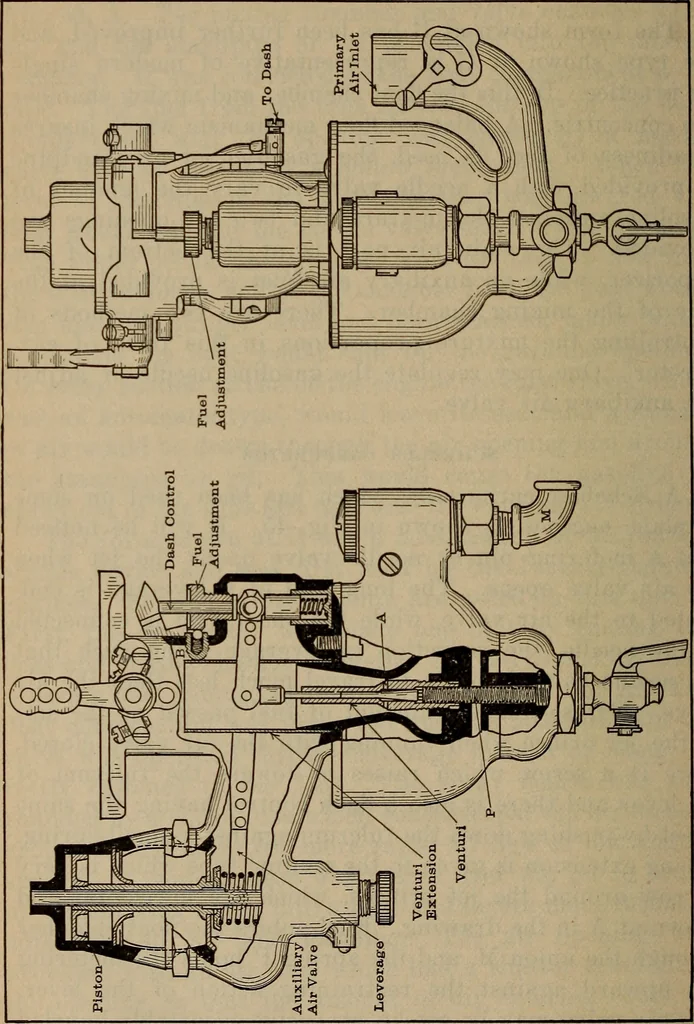

to the venturi tube which is verynarrow around the jet orifices, which are horizontal andshown at A in the drawing. Fuel enters the float chamberthrough the union M, and the spring P holds the meteringpin upward against the restraining action of the lever.The air valve may be set by an easily… … Claudel Carburetor 127 primary air enters beneath the jet passage and there isa small throttle in the intake to increase the speed of airflow for starting purposes. The carburetor is adapted forthe use of a hot-air connection to the stove around theexhaust pipe and it is recommended that such a…
Airplanes
