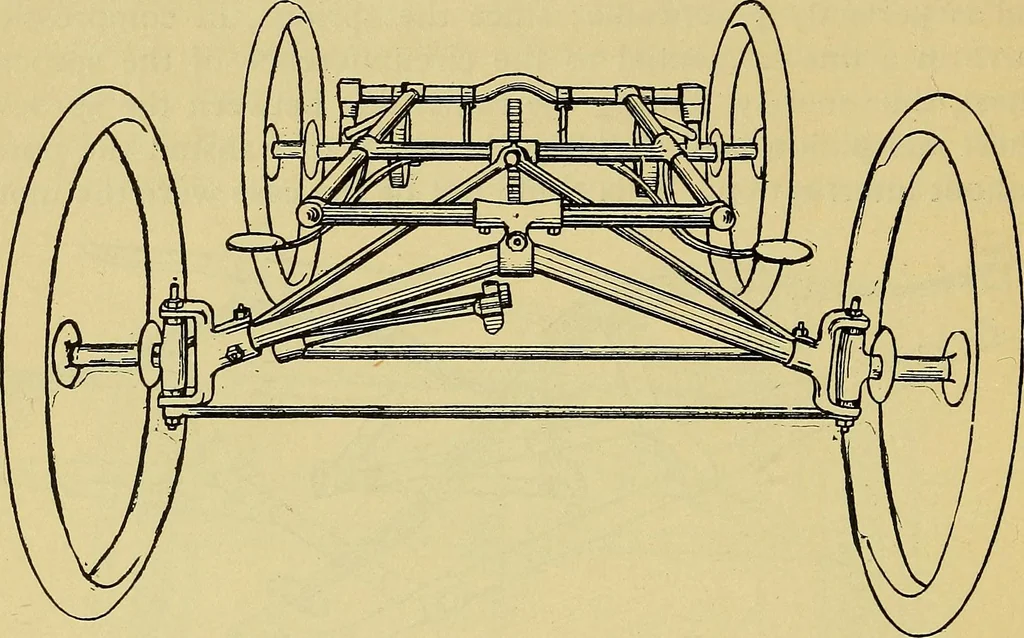

sprocket near theapex. The joints on the forward axle are swiveled, and on the 66 SELF-PROPELLED VEHICLES. rear axle are ring pivots, so as to permit the distortion shown inthe figure on rough or uneven roads. The stay rods at either sideof the reach tubes, joining them to the rear axle tube, are… … Fig. 63.—The Tubular Flexible Underframe of the McKay Carriage, showing the double swivel jointed front axle. on the rear axle is here made continuous with the axle bearings,to which are brazed the centre-divided axle tubes, the three beingconnected and brazed to stay rods. The rear spring, also…
