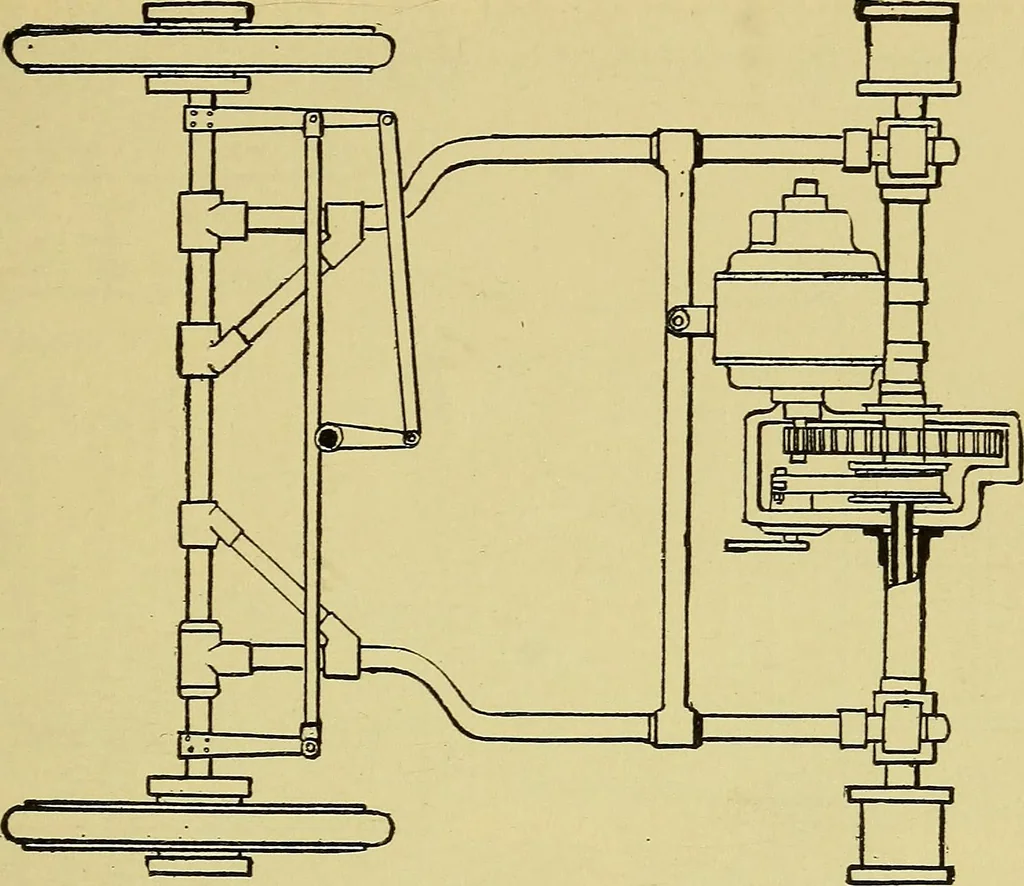

e of very small rubbertires, while in no way diminishing the effect of a flexible frame. UNDERFRAMES CF MOTOR CARRIAGES. 69 The Riker Underframe— One of the best known devices forsecuring a flexible underframe is embodied in the Riker electriccarriages. The construction is of seamless steel tubing… … Fig. 66.—The Riker Underframe, showing the swivel connections at front and rear to per-mit distortion on uneven roads. thus forming a rectangle of diminished width at-the front end.Both the reach tubes are ring-jointed over the forward axle tube;one being securely brazed in place, the other, with…
