The steam engine and turbine; a text-book for engineering colleges (1911)
Heck, Robert Culbertson Hays, 1870- · New York, D. Van Nostrand company · leaf 401

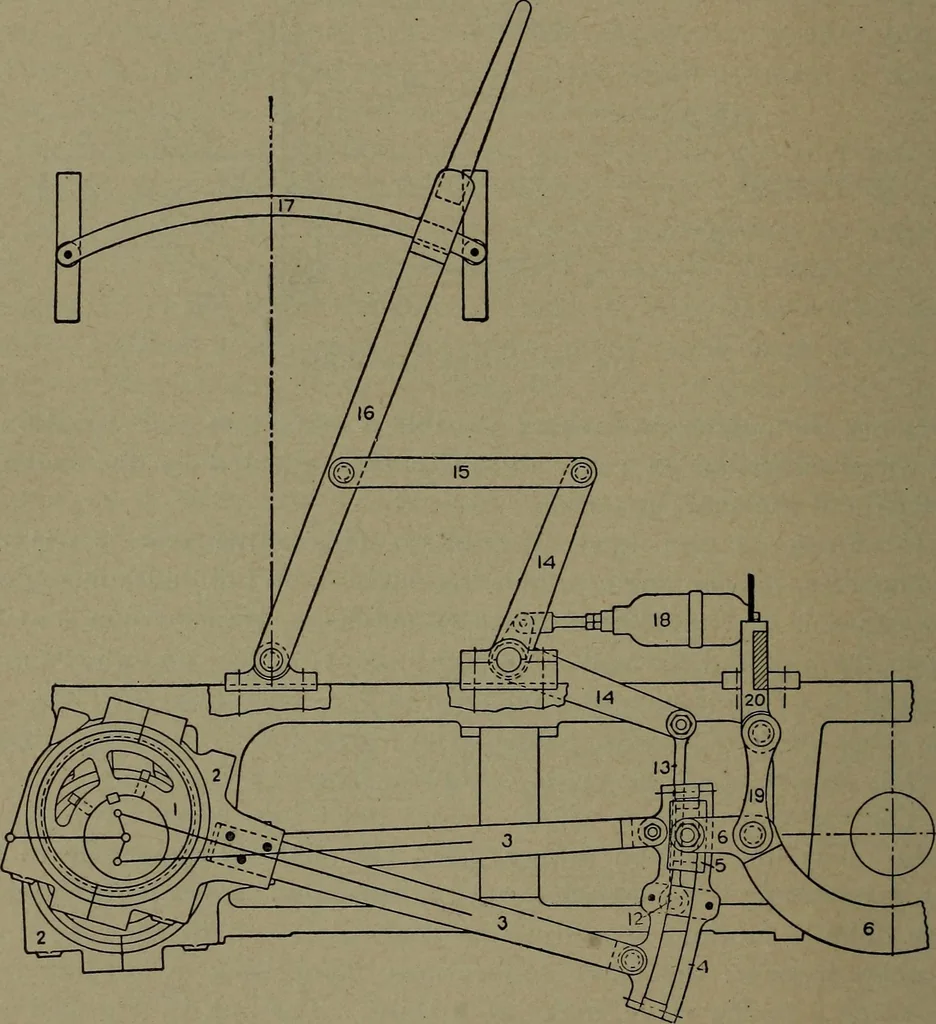

and back as in Fig. 242, while the eccentricrods are forked so as to engage joint pins on the outside of these bars;and thus the block can get clear out into line with either rod. 384 VALVE GEARS AND GOVERNORS. [Chap. VIII. The reverse-lever system, or the adjusting gear, controls the powerof the… … Fig. 242. — A Locomotive Valve Gear. 1.2.3.4.5.6.12. Eccentric.Eccentric Strap.Eccentric Rod.Link.Block. Extension Rod.Hanger Pin. 20. Bearing for Hanger. 13. Suspension Rod. 14. Lifting Shaft. 15. Reach Rod. 16. Reverse Lever. 17. Notched Arc. 18. Balance Spring. 19. Extension-rod Hanger. arc 17,…
Steam-engines · Steam-turbines
