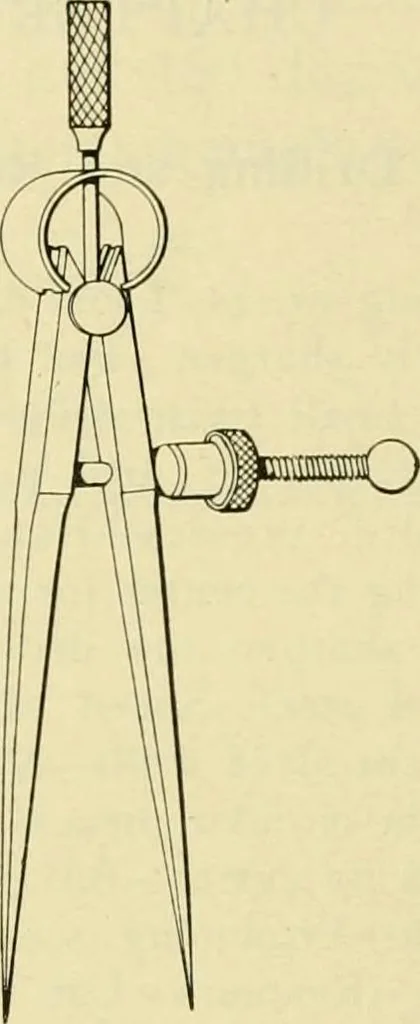

Chapter 3, are apair of dividers and a scriber. These are shown inFig. 124. The brass plate depicted in Fig. 125 is to be drilledas shoA\Ti. It will first be necessary to find the center ofthe plate. A prick-punch mark is placed at each end ofthe plate in the center and the line A (Fig. 126) is… … Fig. 124—A pair of dividers and scriber used in marking out work inch, and witli one leg placed on the edge of the plate andthe other leg in contact with the top surface, the line C
