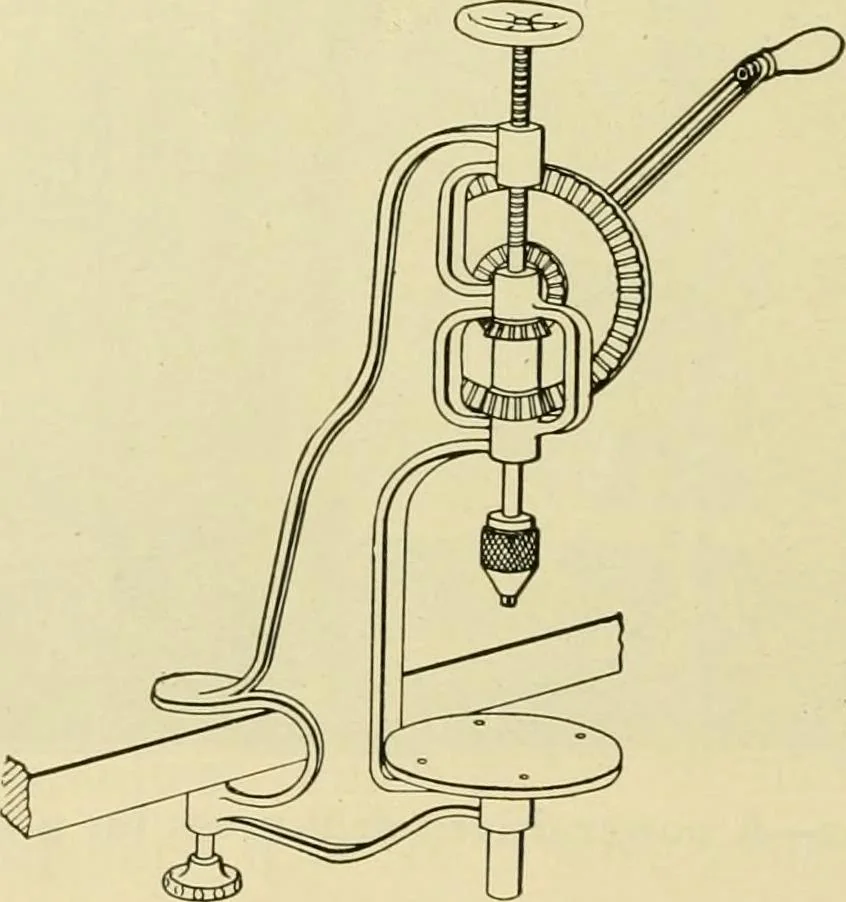

FJg- 133—A small drill chuck jaws to tighten about the shank or top of the drill andhold it. The drill press consists principally of a spindlewhich holds the chuck at its end, and a table upon which … Fig. 134—A small hand-driven drill press the work to be drilled rests. The spindle in the photo-graph (Fig. 132) is marked A, and the table or drilling Drilling and Reaming 113 plate is marked B. The table is adjustable and is heldin position by means of the set screw C. The spindle Ais provided…
