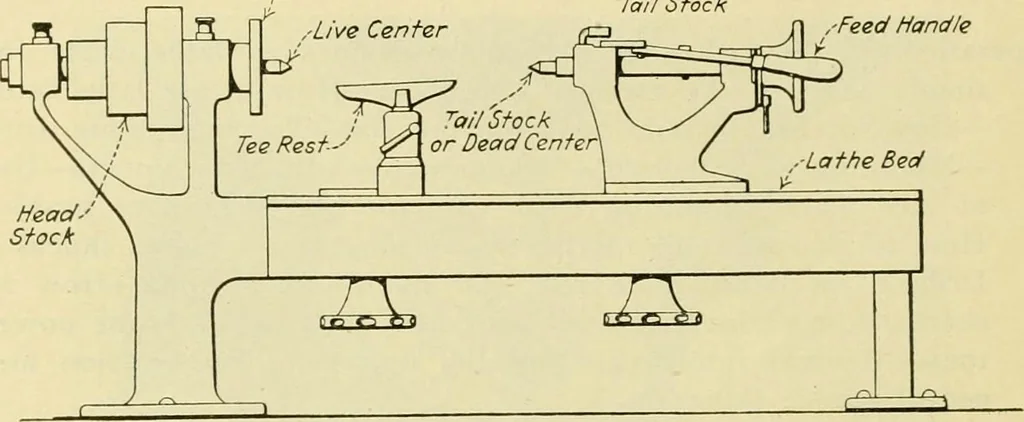

head stock holds the revolving spindleand this is driven with a belt by means of the pulleyssho\\m. These pulleys are arranged in steps so thatvarious speeds can be obtained. Fig. 159 shows a metal 127 128 Shop Practice for Home Mechanics rod mounted in the lathe ready for turning. Before… … Fig. 158—A bench lathe and the names of its various parts It will be seen that the two sharp-pointed centers ofthe lathe protrude into the ends of the rod. The centersof the lathe are ground at an angle of 60 degrees and
