Woodwork for secondary schools; a text-book for high schools and colleges, prevocational and elementary industrial schools (1916)
Griffith, Ira Samuel, 1874-1924 · Peoria, Ill., Manual Arts Press · leaf 132

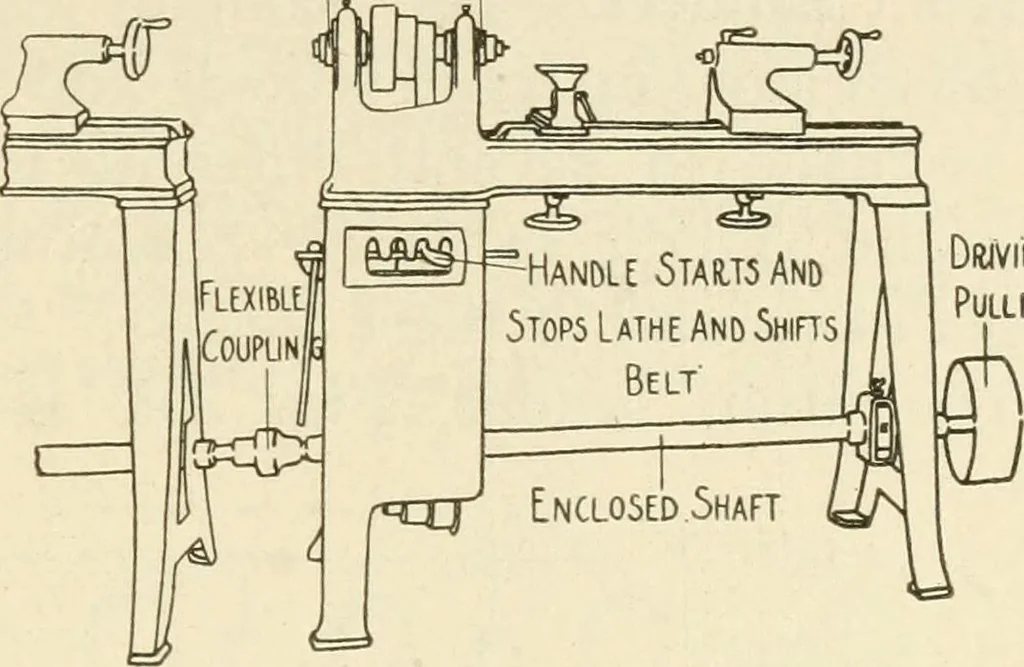

Dead or.Cup Center.Tail Spindle5PINDLE Clamp -Tail-stockTail-stock ClampWays orSheahs Fig. 2(H). L.\the—Counti:rsh.\ft Overhead, and the maximum length between centers. Lathes areconstructed in a number of different forms. Some havethe countershaft overhead, Fig. 200; others have it under,and a… … Fig. 201. Under Driven Lathe. driven either from the headstock, Fig. 202, or from abracket below it. The various parts and their relativepositions are shown in Fig. 200. The headstock on mostall lathes supports ahollow spindle—livespindle, so called, be-cause it revolves. Arod is inserted thruthis…
Woodwork (Manual training)
