Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 136

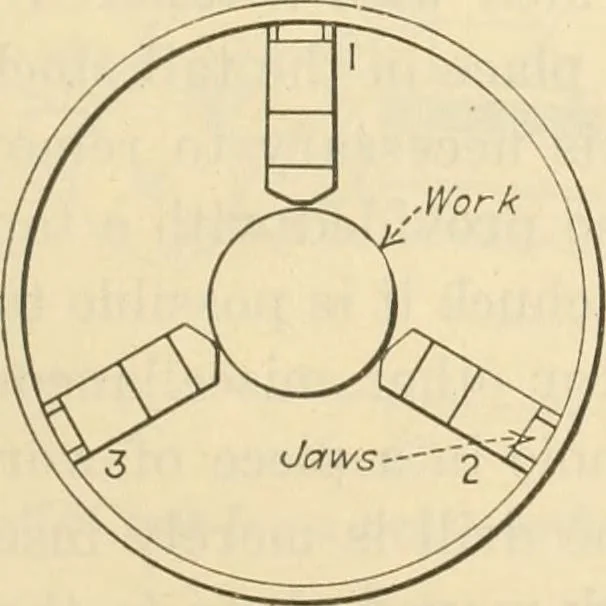

Fig. 172—A drill and three-jawed chuck for use on a bench lathe.The drill chuck has a Morse taper the face plate. The chuck shown is known as a *scrollchuck. The jaws are caused to move by revolving theknurled edge seen at the back. Holes are also drilled in … Fig- 173—How work is held in a three-jawed chuck this edge so that a hook or handle can be inserted totighten the jaws sufficiently. The work is held in the 136 Shop Practice for Home Mechanics chuck as shown in Fig. 173. With the use of this chuckit is not necessary to use two centers in turning a…
Machine-shop practice · Handicraft
