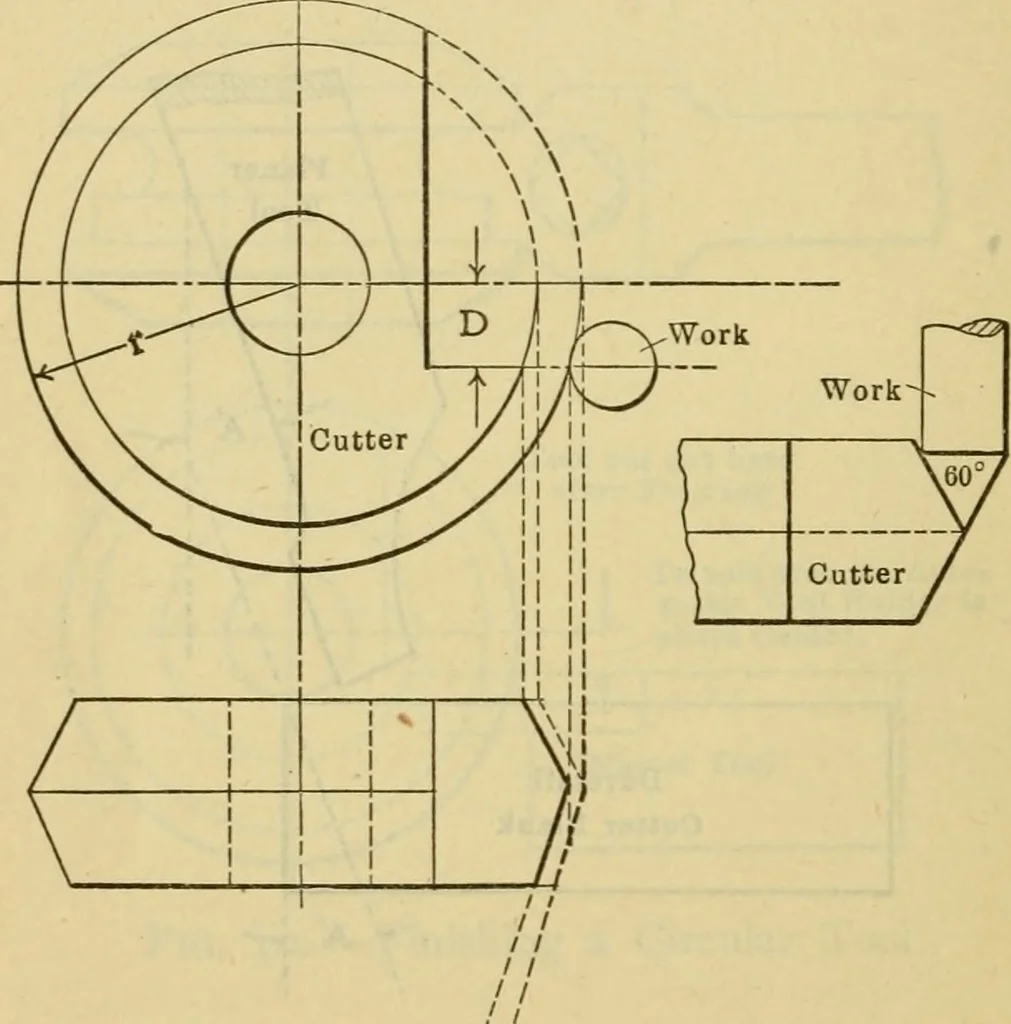

of the exact angle required onthe work may be used for finishing the cutter in the same way as thetool in Fig. 9 is applied; that is, the master is to be dropped belowcenter the amount the cutter center is to be above the work centerwhen in operation. The distance is represented by A in Fig.… … Fig. 12. — Circular Forming Tool for Conical Points cutting tool set at distance D below center, turn off one side of thecutter blank and then set the compound rest around the other wayand face off the other side. If desired a similar method may befollowed for grinding the forming cutter after…
