Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 157

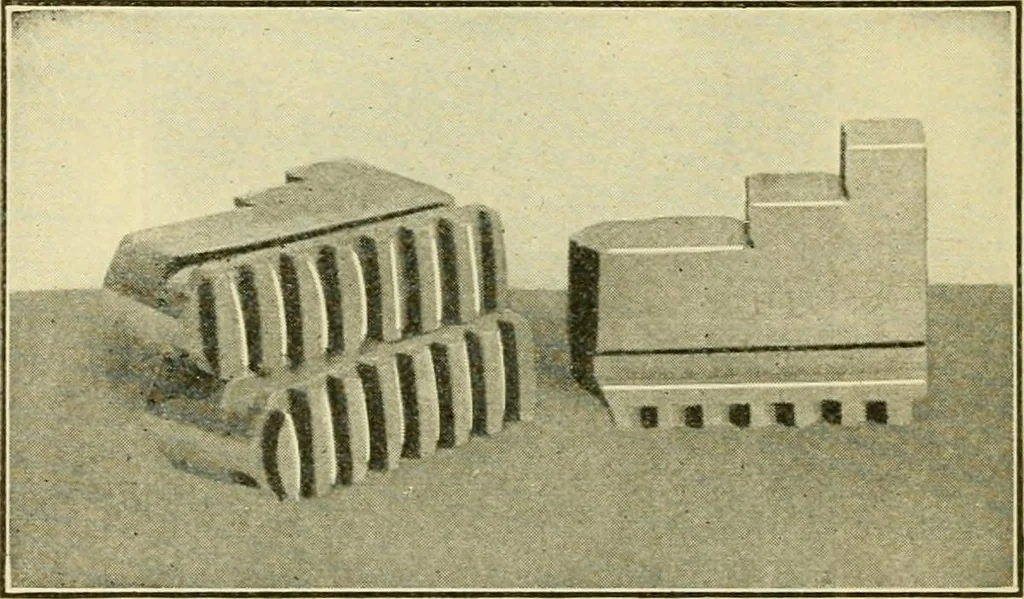

he regula*r jaws of the chuck. This can bedone by turning the key until the jaws are disengaged.They are then lifted out and the outside jaws put in theirplace. It mil be necessary to put each jaw in the properplace and upon examining the jaws it mil be found thatthey are marked 1, 2 and 3. It will… … Fig. 187—The jaws of a three-jawed lathe chuck Returning to the roller which was being turned. Withthe centering completed, the back gears of the lathe arethroA\Ti in and the key inserted in the chuck. The chuckis then given a sharp twist in the same direction in whichthe lathe revolves and in this…
Machine-shop practice · Handicraft
