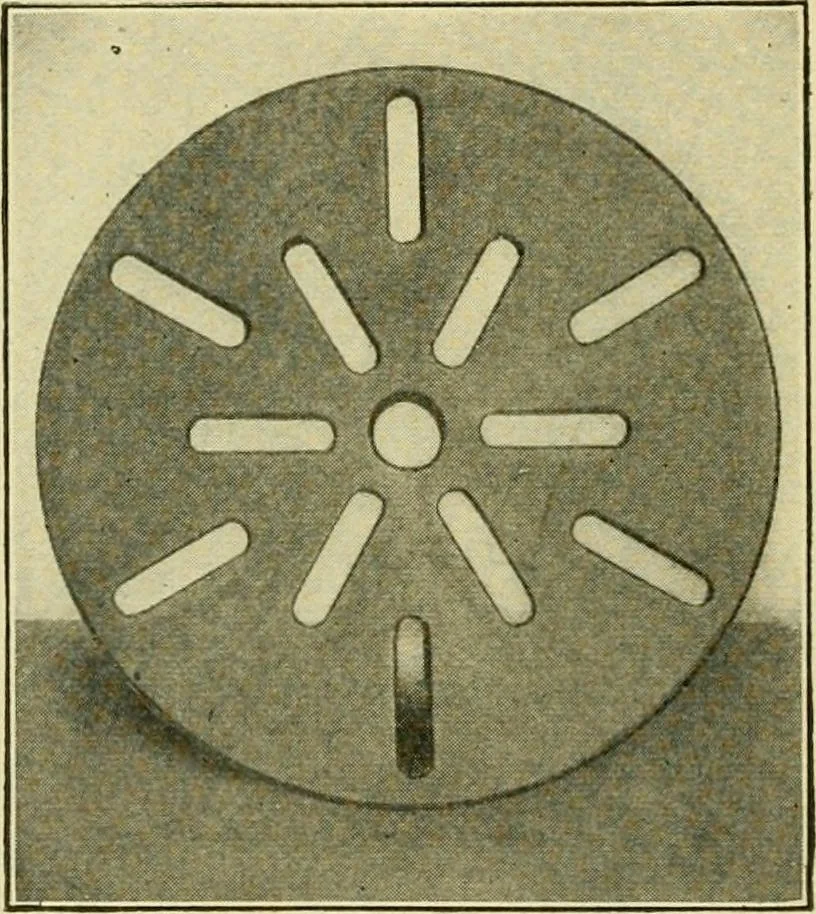

nic has an awk-ward part to machine and he is generally at a loss to 166 Shop Practice for Home Mechanics know just how to mount it in the latlie for turning. Theseasoned mechanic has a peculiar instinct Avhich tells himjust how to overcome this obstacle which causes the l)e-ginner such a great… … Fig. 196—A large lathe face plate mount it upon the face plate of his lathe. The face plateof a lathe is provided with various slots and by the useof small carriage bolts it is possible to mount various-shaped pieces upon it. A face plate is shown in Fig. 196.In putting the face plate upon the…
