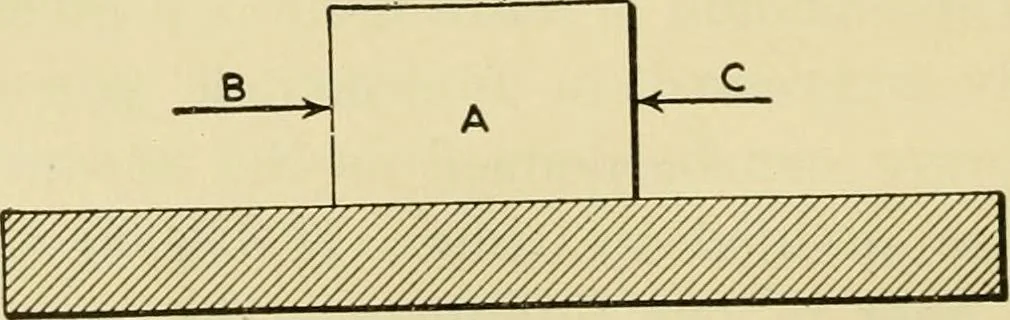

Fig. I—The representation of forces graphically The application of force to matter is one of the mostimportant phases of theoretical mechanics. In Fig. 1,the body A has been moved from B to C in the directionof the arrow. The applied force is represented graphic-ally by the straight line. The arrow… … Fig. 2—Two equal forces acting in opposite directions will notproduce motion magnitude or value of the applied force because it wouldrequire a greater force to move the body A one inch than Introduction to Study of Elementary Mechanics 17 it would to move it a half inch. The graphical…
