Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 171

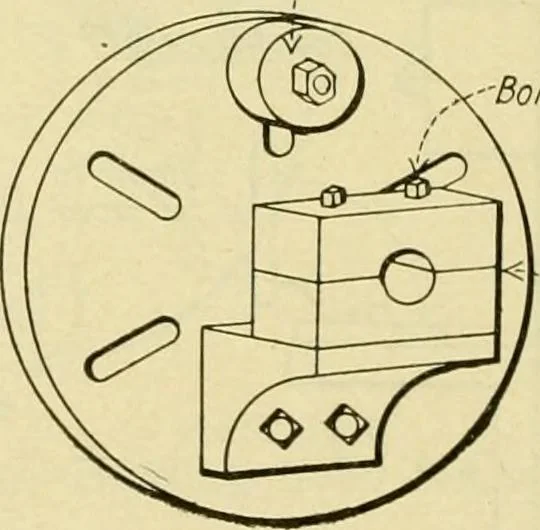

at the angleplate is an extremely useful device for many odd jobsand although lathes are not supplied with this attach-ment the mechanic will do well to make a simple patternand have one cast at the foundry. Wooden blocks are very useful in turning certain odd-shaped pieces of work and the mechanic… … ^Bearincf Fig. 20I—A split bearing mounted on a face plate with counterweight in place of odd-shaped castings that it would otherwise be quiteimpossible to w^ork with. The use of blocks is shown atFig. 202. Here a small face plate is to be surfaced.Omng to the fact that the angle plate must be…
Machine-shop practice · Handicraft
