Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 191

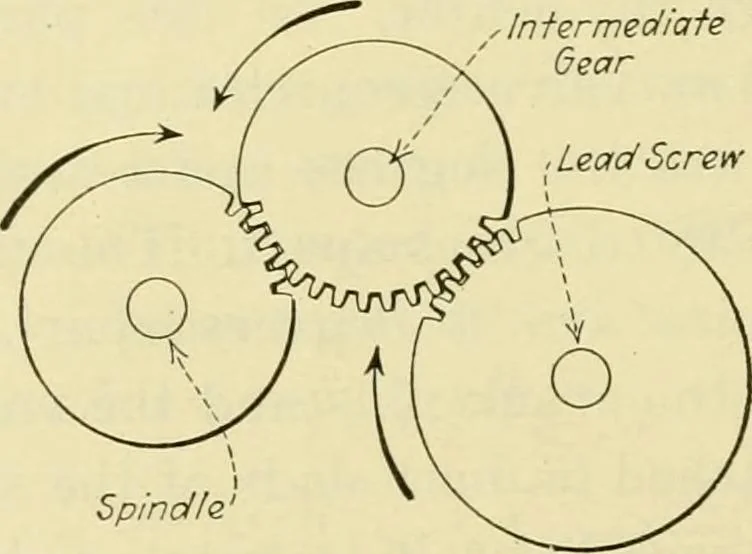

s then turned to shape.AVhen this is completed the shaft is taken out of the latlieand mounted in the centers opposite to those just used.Then the other crank pin is turned. This accomplished,the crankshaft is again taken from between centers andmounted on one of the valve eccentric centers. This… … Spinc/feFig. 224—How the gears are arranged on the lathe for screw-cutting tween the original centers which are in the center of thestock. The central portions of the stock are then re-moved, leaving the crankshaft in the shape shown inFig. 222. At this juncture it will be well to consider screw…
Machine-shop practice · Handicraft
