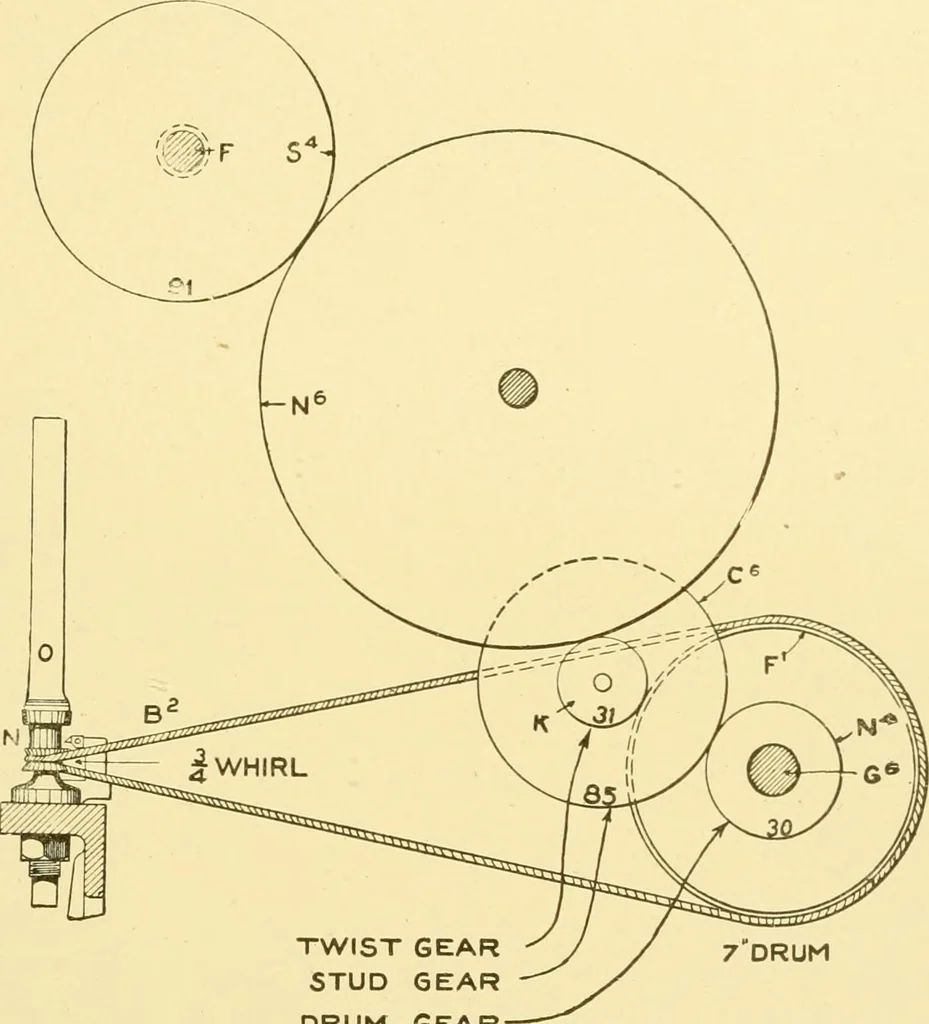

a to X ^ H 3 %^ S S < o X ^ w & (\)TT()X SPIXXING 257 changes in speed are made by having a different number of teeth ineither the upper or lower sprocket gear. The binder pulley, T,which is carried by an arm, V, is for taking up the slack of the chainwhen necessary. To change the draft,… … TWIST GEAR ^^ / zDRUM STUD GEARDRUM GEAR- Fig. 220. Diagram of Twist Gearing. teeth are shown. These may be changed to twenty and sixty-fourteeth or thirty and one hundred four teeth. The back roll gear shown has fifty-six teeth but it is also suppliedwith fifty, fifty-four or fifty-five teeth. The…
