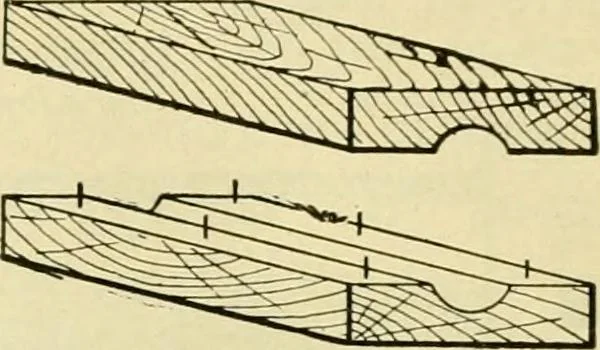

Fig. 269—A core box for use with the pattern shown in Fig. 268 One half of the core box is provided with projectingbrads and the opposite half has small holes drilled in itto receive these brads, and the two halves are held to-gether in this way. When placed together, the foundry- 238 Shop Practice… … Fig. 269A—A core box hole is pressed full the core box is split apart and thesand lifted out. dJ: Fig. 270—The print left by a cored pattern By carefully studying Fig. 270 and 271, the use of acore box and core prints on the pattern will be under-
