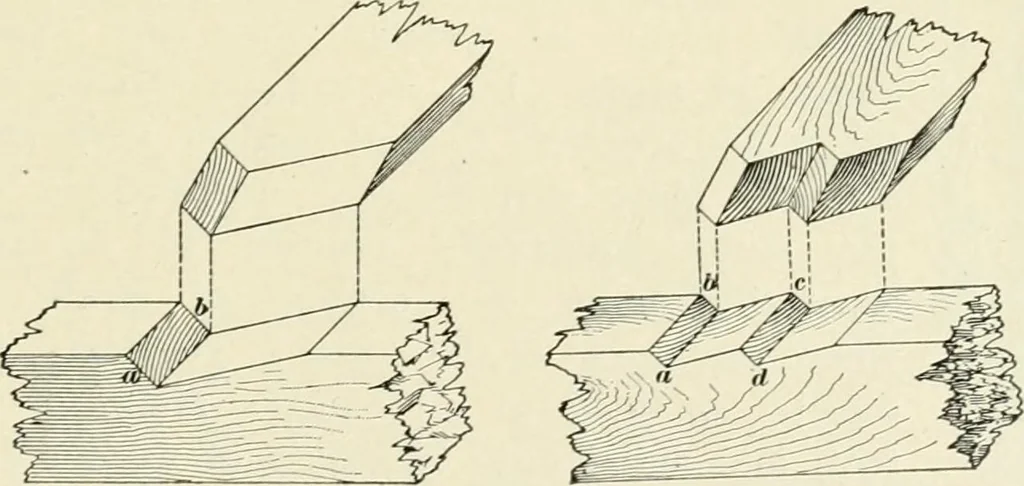

{a) (.b) Fig. 19. strut would weaken the beam too much. Two notches arethen made, each of which should be equal to from one-sixthto one-quarter the depth of the strut, so that the sum of thetwo bearing surfaces a b and dc, at (b)^ is equal to the singlebearing surface ab^ at {a). 40 CARPENTRY. S9…
