Shop practice for home mechanics, use of tools, shop processes, construction of small machines. Contains a chapter also on theoretical mechanics and on miscellaneous information relative to shop work (1920)
Yates, Raymond F. (Raymond Francis), 1895- · New York, N. W. Henley Pub. Co. · leaf 284

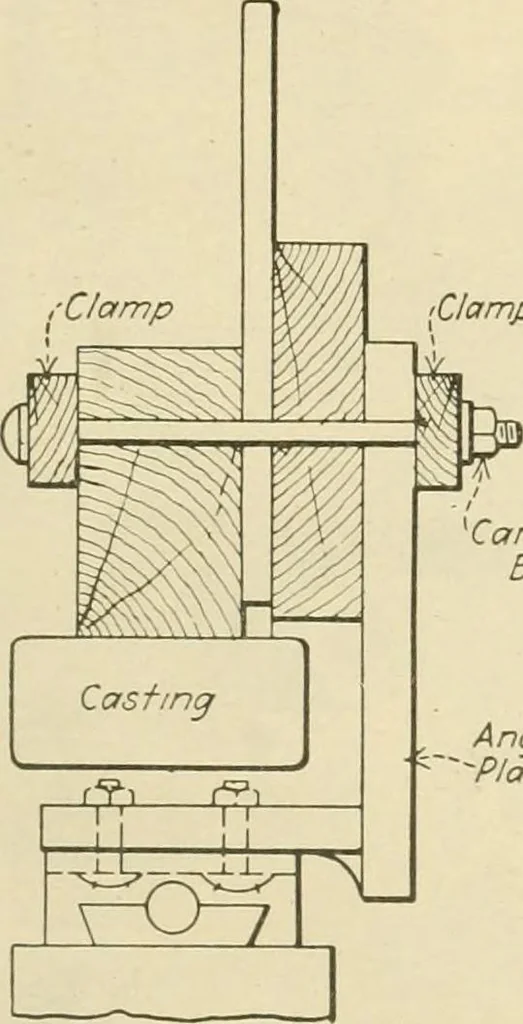

ult if theamateur has a lathe with a smng great enough to accom-modate it. It will, however, become a troublesome jobif a lathe this size is not at hand. It is on jobs such as Construction of Smalt Poirer Driven Drill Press 283 this that the mechanic must use his mind and study theAvork before him… … Clamp CarriaqeBolt , AnglePlate Fig. 296—How blocks are used to mount, the drilling table for boring 296 and more clearly at Fig. 297. It will be seen that thelathe angle plate is first clamped to the cross slide.AVhen the lathe angle plate is bolted tightly in place, itshould be tested wdtli the…
Machine-shop practice · Handicraft
