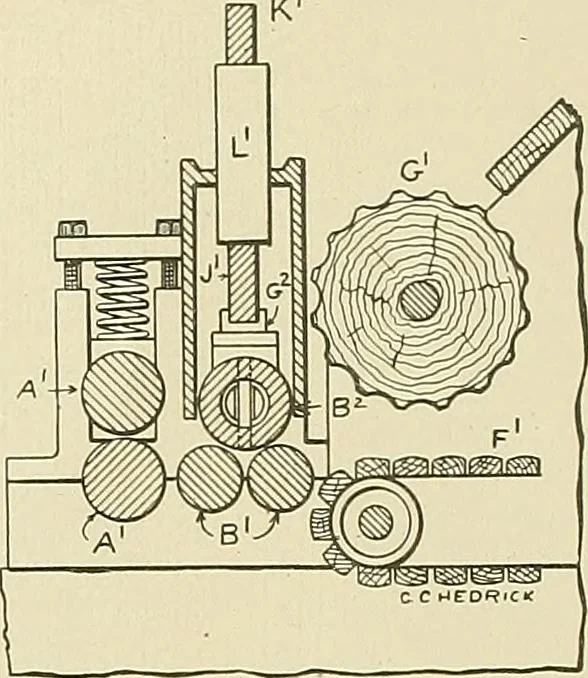

e is shown at the right in Fig. 31.On the end of the beater shaft, and shown by dotted lines, is apulley, K, Avhich drives the drum, F, hy means of the belt, L, pulley,M, and gears, N and O, the last-being upon the end of tlie drumshaft. On the top apron roll is a gear, P, which drives a… … Section Showing Evener Rollsand Feed Rolls. 78 COTTON SPINNING. 43 and Di, and the evener rolls, B^ and B^, are driven by the gears,Ci and El. It will be seen that by this arrangement any changeill the speed of thee levating apron directly affects the speed of theevener and feed rolls. Fig. 32 is a…
